| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | REACH, SGS, RoHS2.0, ISO:9001-2015, CE |
| Model Number: | EGG.0B.304.CLN |
| الحد الأدنى لكمية: | 5 قطعة/قطع |
| الأسعار: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7wds |
| شروط الدفع: | Western Union ، L/C ، D/A ، D/P ، T/T |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| Type: | LEMO/ connector | مسلسل: | موصلات دائرية بالدفع والسحب |
|---|---|---|---|
| Contact no.: | 2,3,4pins | عازل: | PPS/نظرة خاطفة |
| Surface treatment: | Black/natural chrome plated | Application: | Data Transfer Equipment |
| Endurance: | 5000 times push pull | تصنيف الملكية الفكرية: | IP50 |
| إبراز: | electronics component connectors,cable connector plug,cable connector plug |
||
L, Lemo B series circular push pull connectors FGG EGG S2 G1 circular 4 pin connector
|
RAYMO P/N |
Lemo P/N |
P/N |
|
RM-EGG-0BC-302-KN |
EGG.0B.304.CLN |
G10L0C-P04 |

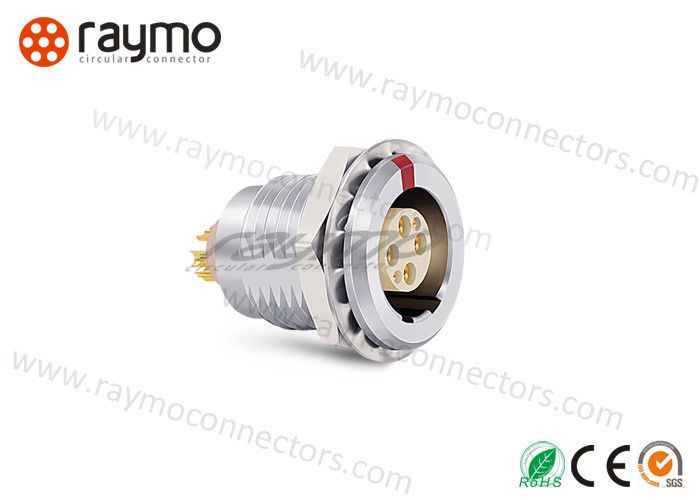

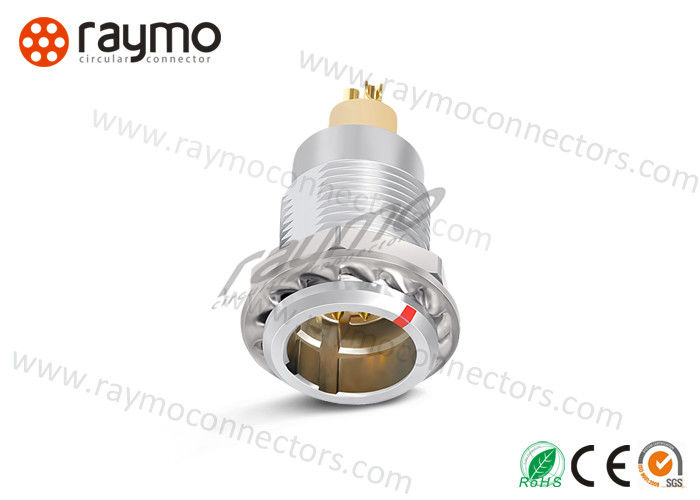

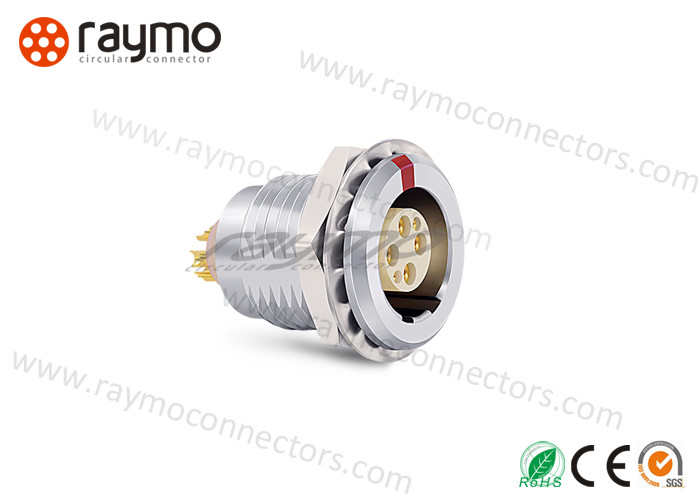

Description: 0B 4pins circular push pull connectors,fixed receptacle,STRAIGHT PCB contacts.
alternative with LEMO B EGG and L G1series.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
| Main Features |
|
100% compatible with LEMO FGG EGG |
|
security of the Push-Pull self-latching system |
|
multipole types 2 to 32 contacts |
|
solder/ print contacts (straight or elbow) |
|
multiple key options to avoid cross mating,such us 30, 45, 60, 90, 135 |
|
high packing density for space savings |
|
5000 times push pull |
|
Technical Characteristics |
|||
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP50 |
Endurance(shell) |
5000 mating cycles |
.
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| 4B | 7 | 10 | 24 | ||||||||||||
RFQ:
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
