| مكان المنشأ: | قوانغدونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RM-SFA-1F1C-P05JS |
| الحد الأدنى لكمية: | قطعة واحدة |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس البولي ايثيلين والكرتون |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | T/T ، L/C. |
| القدرة على العرض: | 5000 قطعة في الأسبوع |
| Prct Type:: | Hermetic panel mount plug | Shell Size:: | 103/1F, 102/0F |
|---|---|---|---|
| Application:: | Medical, Machines, Military, Audio& Video, Automative | Contact No.:: | 5 pins (2, 3, 4 …… 16 pins are available) |
| Insulator:: | PPS / PEEK | Outer Shell Material:: | Brass with chrome plated |
| لون:: | الفضة / الأسود | مادة الاتصال: | نحاس مطلي بالذهب |
| نوع الاتصال:: | لحام | تصنيف IP:: | IP68 |
| تَحمُّل:: | 5000 دورة | Cable Assembly:: | Yes |
| الصانع:: | نعم | خدمة مخصصة:: | شنتشن |
| إبراز: | waterproof wire connectors,waterproof electrical connectors,waterproof electrical connectors |
||

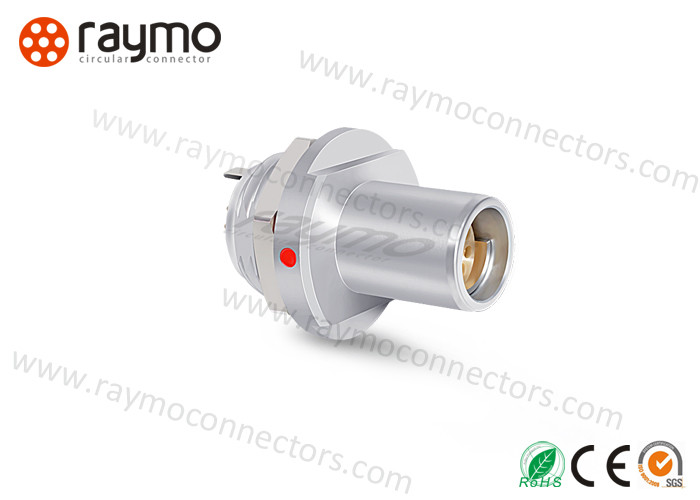

Part No: RM-SFA-1F1C-P05JS / SFA 103 A 054 -130
Description: SFA 103/1F series straight plug, keying code 1, 5pin fixed panel mount plug , in solder type, PPS insulator, outer shell in natural chrome plated brass
| Mechanical and Climatical Characteristics | |||
| Characteris | Value | Standard | |
| Endurance: | >5000cycles | IEC60512-5test9a | |
| Humidity: | Up to 95% at60°C | ||
| Temperature range: | -55°C, +250°C | ||
| Resistance to vibra: | 10-2000Hz,15g | IEC 60512-4 test 6d | |
| Shock resistance: | 100g, 6ms | IEC 60512-4 test 6c | |
| Salt spray corrosion test: | >96h | IEC 60512-6 test 11f | |
| Protection index (mated): | IP68 | IEC 60529 | |
| Climatical categery: | 55/175/21 | IEC 60068-1 | |
| Electrical Characteristics | |||
| Characteris | Value | Standard | |
| Shielding efficiency | at 10 MHZ | >95 dB | IEC 60619-1-3 |
| at 1 GHz | >80 dB | IEC 60619-1-3 | |
Main features:
Photo & Dimensions:
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
