مكان المنشأ: | الصين |
---|---|
اسم العلامة التجارية: | RAYMO |
إصدار الشهادات: | ISO:9001-2015 |
Model Number: | EPG.0B.304.CLN |
الحد الأدنى لكمية: | 1 قطعة/قطعة |
الأسعار: | negotiable |
Packaging Details: | Plastic Bag & Carton |
وقت التسليم: | 5-7 أيام عمل |
Payment Terms: | T/T, PAYPAL, EBAY |
القدرة على العرض: | 5000 قطعة / أسبوع |

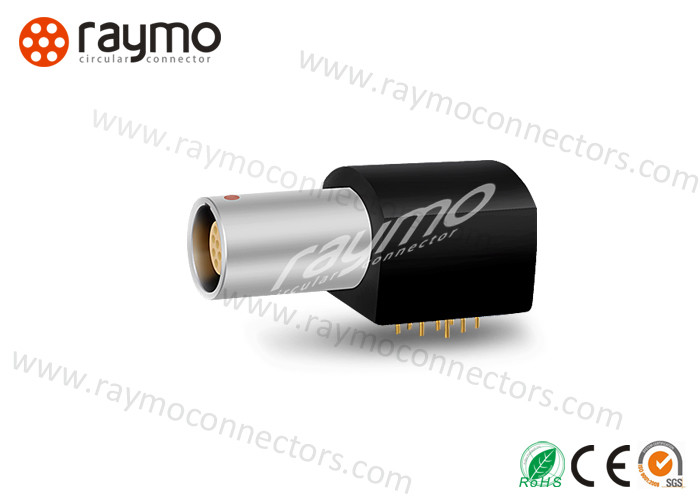

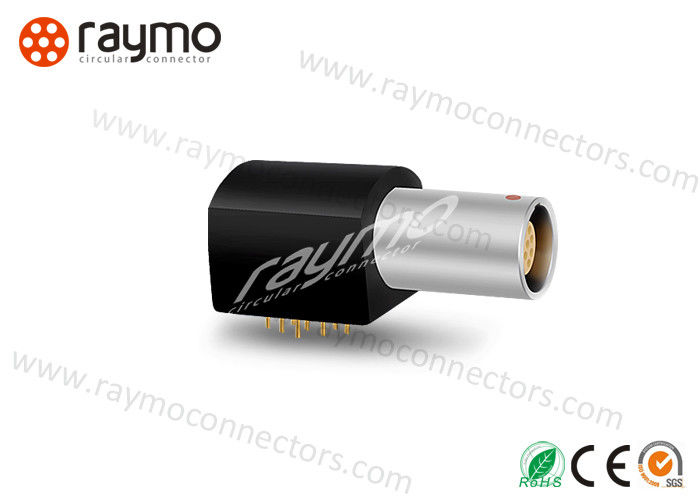

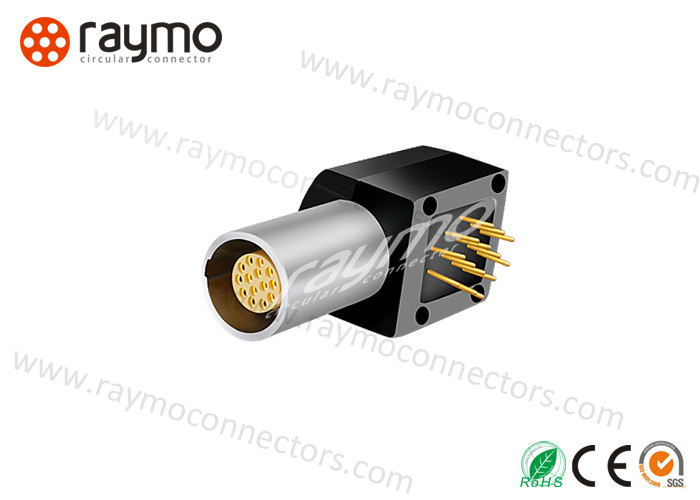

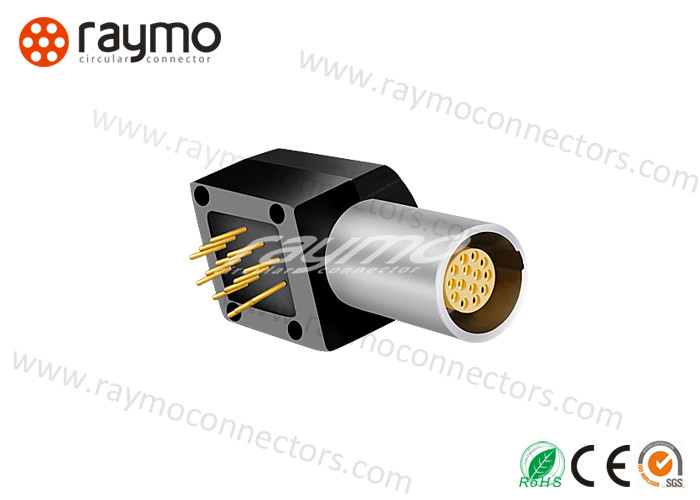

Prct Name: | PCB Connector | Shell size: | 0B series Elbow connector |
---|---|---|---|
Contact no.: | 4pin female contact | مادة الصدفة: | كوزن |
صالة: | PCB | عازل: | PPS |
إبراز: | circuit board connectors,pcb board connector,pcb board connector |
Connector Descitption Details: | |||
Shell model | Elbow EPG | Shell size | 00B 0B 1B |
Gender | Female | Contact No. | 2,3,4,5,6,7,8,9,10,12,14 , |
MOQ | 1pc | Delivery | 5-7 working days |
Endurance(shell) | 5000 mating cycles | Humidity | up to 95% at 60° C/140F |
Technical Characteristics | |||
Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
IP Rating | IP 50 | Endurance(shell) | 5000 mating cycles |
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
