| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHs 2.0 CE , ISO , SGS |
| Model Number: | PRG.M0.3GL.LC65G |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| وقت التسليم: | 5-7 أيام عمل |
| Payment Terms: | T/T, PAYPAL, EBAY |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| Prct Name: | Cable to cable connector | حجم القشرة: | 1 ص |
|---|---|---|---|
| رقم الاتصال.: | 3 دبوس | Shell material: | PC gray colour |
| Screw colour: | gray, red, blue, green , black, white, yellow | عازل: | PPS |
| إبراز: | plastic push pull connector,cable assembly connector,cable assembly connector |
||
| P/N . | PRG.M0.3GL.LC65G |

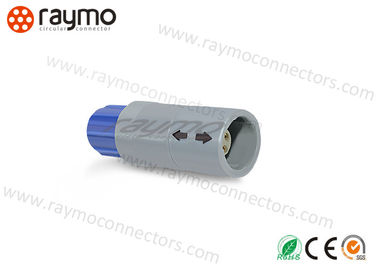

| Description | cable to cable connector, 3pin female contact, 65 cable collet, round nut in gray colour, 1 key, 0 degree |
| Characteristics | |
| 1 | Secure high performance push-pull Self-locking system |
| 2 | IP40 |
| 3 | 3 codes alignment Key and Polarized Keying System to avoid cross-interface. |
| 4 | Many colour options RED, GREEN, BLACK, WHITE, YELLOW, BLUE, GRAY |
| 5 | High pin density contributing to equipment miniaturization |
| 6 | Shock resistant designs |
| 7 | Functional in a wide temperature range from -40°C to +125°C |
| 8 | Available solder and PCB or right angle PCB contact. |
| 9 | ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
