| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS, REACH, SGS, ISO:9001-2015, CE |
| Model Number: | ECG.0B.302.CLL |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس البولي ايثيلين والكرتون |
| وقت التسليم: | 3-5 أيام عمل |
| Payment Terms: | Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| يكتب: | موصل سحب دفع دائري | Gender: | Female solder contacts |
|---|---|---|---|
| Contact no.: | 2.3.4.5.6.7.9pins | Insulator: | PPS, PEEK |
| مادة الصدفة: | النحاس | Application: | Test and MeaAnalysis Application |
| إبراز: | electronic cable connectors,cable connector plug,cable connector plug |
||

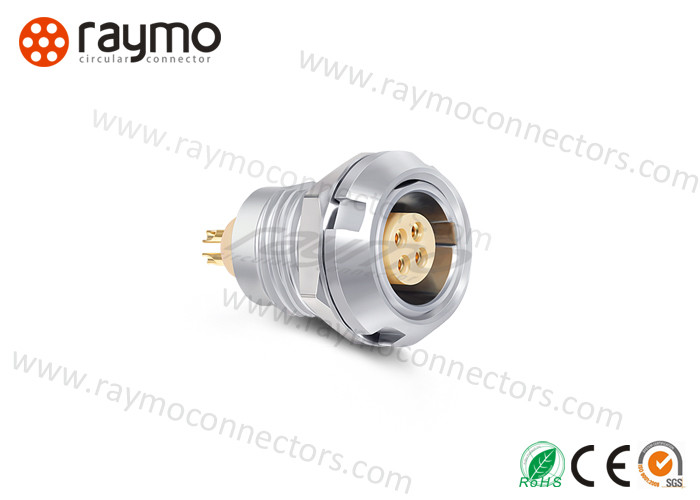

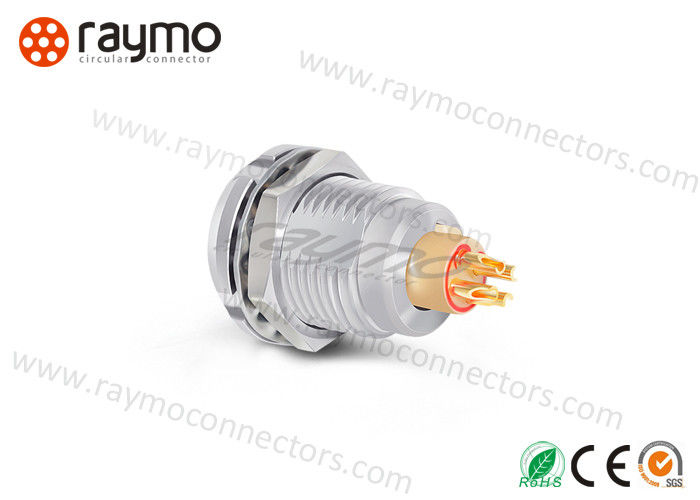

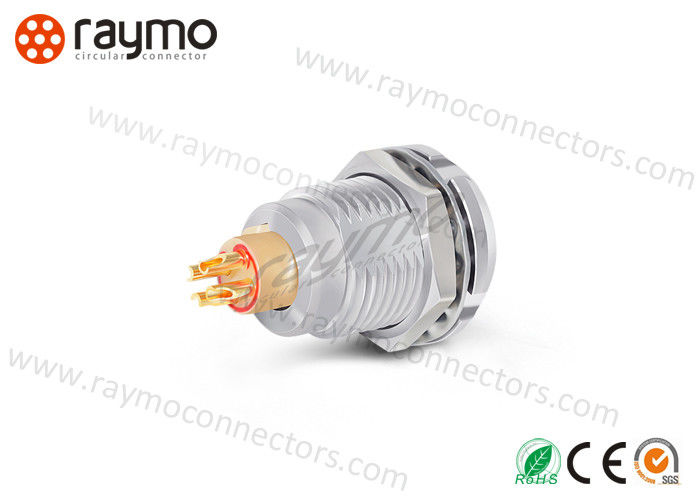

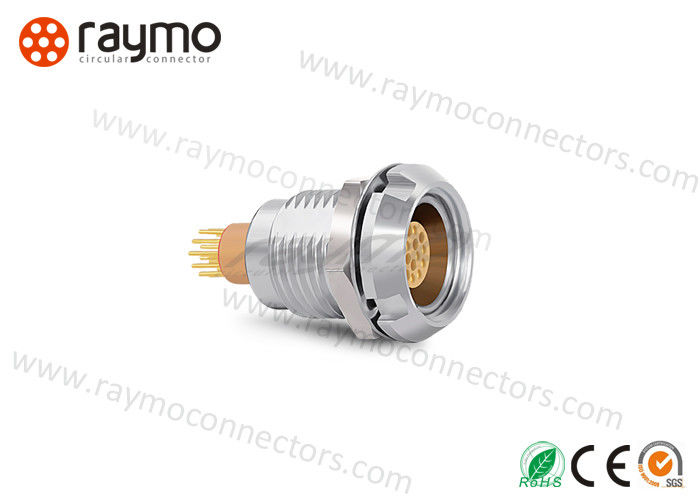

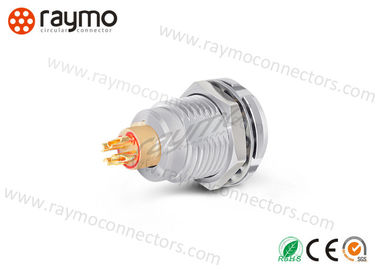

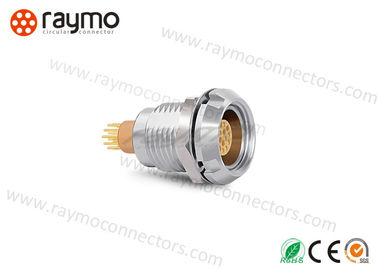

3pins Subsitute Lemo B EGG EEG ECG Connectors, Circular Push pull Connector, brass shell ECG.0B.303.CLL
|
Raymo P/N |
LEMO P/N |
|
RM-ECG.0BC.303.KS |
ECG.0B.303.CLL |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| RM-00B | |||||||||||||||
| RM-0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4B | 7 | 10 | 24 | ||||||||||||
| Technical Characteristics | |||
| Temperature Range | - 50° C, +250° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | PC | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | ≥5000 mating cycles |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
