| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | ISO:9001-2015, CE, RoHS2.0, SGS, REACH |
| Model Number: | FEG.0B.303.CLAC52Z |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| وقت التسليم: | 5-7 أيام العمل |
| شروط الدفع: | ويسترن يونيون ، L / C ، D / A ، D / P ، T / T ، MoneyGram |
| Supply Ability: | 5000 Pieces / Week |
| يكتب: | موصل سحب دفع دائري | Contacts No.: | 2pins, 3pins, 4pins, 5pins, 6pins, 7pins, 9pins |
|---|---|---|---|
| Shell size: | 0B, Other shell size are available | Gender: | Male or Female solder contacts |
| Insulator: | PPS, PEEK | تصنيف الملكية الفكرية: | IP54 |
| إبراز: | electronic cable connectors,cable connector plug,cable connector plug |
||

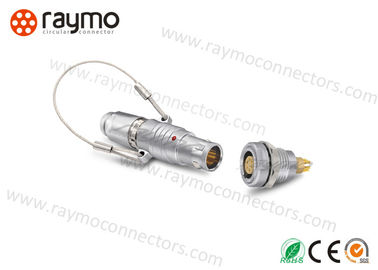

Customized Solutions B/K Series Quick Locking Push Pull Circular Automotive Connector with Cable/Solder/PCB Type
|
Shell size |
Contacts no. ( Both with Solder & PCB type ) |
||||||||||||||
| RM-0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4B | 7 | 10 | 24 | ||||||||||||
| 1.Shell size | 00 to size 3(#00,#0,#1,#2,#3) |
| 2. Multi-pole types | 2 to 32 contacts |
| 3. Security | push-pull self-latching system |
| 4.contacts (straight or elbow) | Solder ,print or crimp |
| 5.Packing | High packing density for space saving |
| 7.Key options | 0°,30°,45°,60° |
| 8. Male contacts and female contacts | brass with gold-plated surface |
| 9. Out shells | brass with chrome nickel-plated surface |
| 10. Insulator | PPS and PEEK |
| 11.Screening | 360 angle screening for full EMC shielding. |
Raymo connector is a professional supplier of high-end connector solutions, company have advanced
prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provide
innovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.
By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,
ROHS certification, CE certification, Reach certification and other authoritative certification.
Our Advantage
1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
