| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | SGS, CE, RoHS2.0, ISO:9001-2015, REACH |
| Model Number: | FHG.0B.302.CLAC52Z |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| وقت التسليم: | 5-7 أيام العمل |
| شروط الدفع: | ويسترن يونيون ، L / C ، D / A ، D / P ، T / T ، MoneyGram |
| Supply Ability: | 5000 Pieces / Week |
| Type: | Compatible LEMO connector B K S series | مادة الاتصال: | النحاس |
|---|---|---|---|
| مواد عازل: | PPS | نوع الموصل: | اللحام |
| Endurance: | ≥5000cycles | طلب: | السيارات |
| إبراز: | electronics component connectors,cable connector plug,cable connector plug |
||

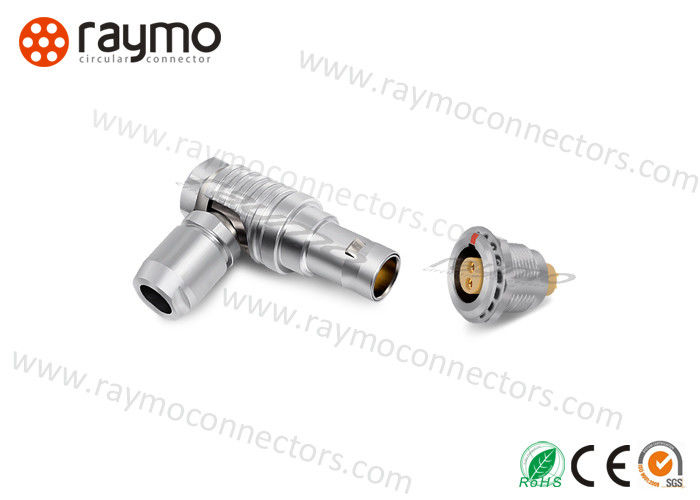

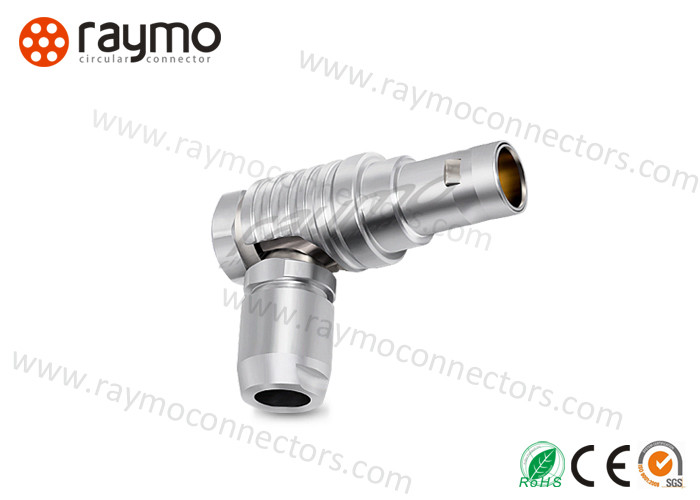

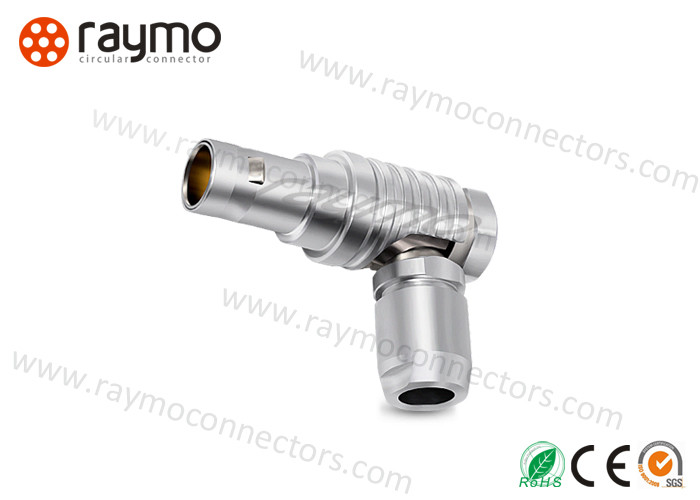

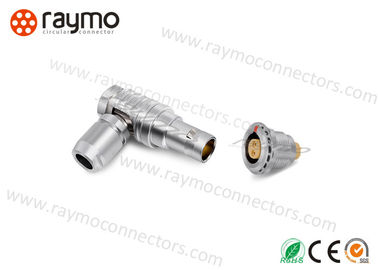

FHG 0B elbow plug 2 3 4 5 pin circular push pull connector, military aviation micro elbow connector, FHG.0B.302
| 1.Shell size | 00 to size 3(#00, #0, #1, #2, #3, #4) |
| 2. Multi-pole types | 2 to 32 contacts |
| 3. Security | push-pull self-latching system |
| 4.contacts (straight or elbow) | Solder ,print or crimp |
| 5.Packing | High packing density for space saving |
| 7.Key options | 0°,30°,45°,60° and other de |
| 8. Male contacts and female contacts | brass with gold-plated surface |
| 9. Out shells | brass with Natural chrome nickel-plated surface |
| 10. Insulator | PPS is standars, PEEK |
| 11.Screening | 360 angle screening for full EMC shielding. |
|
Shell size |
Contacts no. ( Both with Solder & PCB type ) |
||||||||||||||
| RM-0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4B | 7 | 10 | 24 | ||||||||||||
RAYMO is a manufactuer that:
1.Can I order a small list ?
---Of course, you can.
2.What quote do you offer?
---FOB , CIF and others ways according the your needs.
3.How transport?
---Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
---We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
---Certainly,you can contact us at any time.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
