| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | SGS, RoHS2.0, ISO:9001-2015, CE, REACH |
| Model Number: | ERA.00.250.CLL |
| الحد الأدنى لكمية: | 5 قطعة/قطع |
| الأسعار: | negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7wds |
| شروط الدفع: | Western Union ، L/C ، D/A ، D/P ، T/T |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| Type: | ERA PANEL SOCKET | Shell Size: | 00S, 0S, 1S, 2S |
|---|---|---|---|
| Contacts: | COAXIAL PIN, 50ohm | جنس: | الاتصال الإناثي |
| Insulator: | PPS, PEEK is available | تصنيف الملكية الفكرية: | IP50 |
| إبراز: | cable elbow connector,cable to cable connector,cable to cable connector |
||

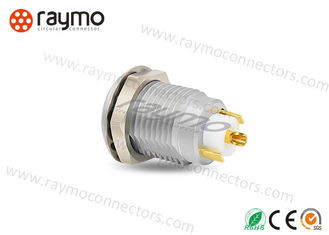

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector
00S 50OHM Coaxial connector
Straight PCB, solder and elbow PCB contacts are available too
| RAYMO PART NO | LEMO PART NO |
| RM-ERA-00S-250-KS | ERA.00.250.CLL |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||
| 00S | 1(coaxial) | |||||
| 0S | 1(coaxial) | 2 | 3 | 4 | ||
| 1S | 1(coaxial) | 2 | 3 | 4 | 5 | 6 |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | 5000 mating cycles |
