| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | ISO:9001-2015, REACH, SGS, CE, ROhS |
| رقم الموديل: | ECG.1B.316.Cll |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس بلاستيكي وكرتون |
| وقت التسليم: | 5-7 أيام عمل |
| شروط الدفع: | T/T ، Western Union ، D/A ، D/P ، L/C ، Moneygram |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| اسم PRCT: | موصل سحب دفع دائري | حجم القشرة: | 00b ، 1b ، 2b ، 3b ، 4b |
|---|---|---|---|
| رقم الاتصال.: | 16 دبابيس | عازل: | PPS ، نظرة خاطفة متوفرة |
| لون الصدفة: | كروم فضي | تصنيف الملكية الفكرية: | IP50 |
| إبراز: | 1b Circular Power Connector,Peek Insulator Circular Power Connector,Lemos Ecg Circular Plug Connector,Peek Insulator Circular Power Connector,Lemos Ecg Circular Plug Connector |
||
Prct Description

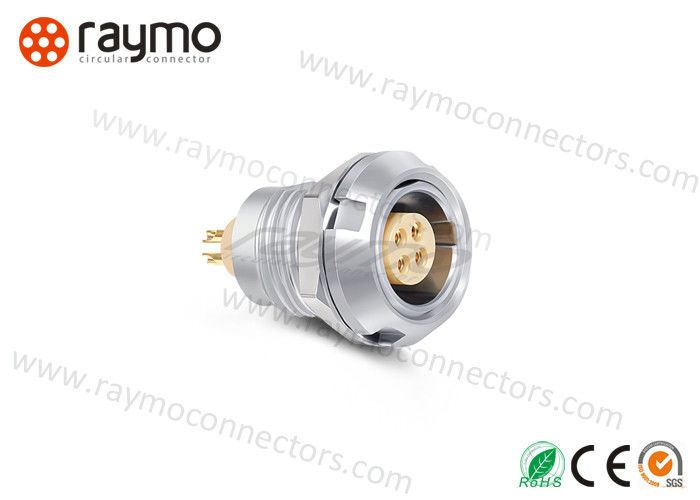

peek insulator female receptacle, lemos ecg 00b 0b 1b 2 pin to 16 pins circular push pull connectors of tv and motion
|
Part No.: |
ECG.1B.316.CLL= RM-ECG.1BC.316.KS |
|
Prct Description: |
Circular push pull connector, panel socke, 16 pins, 1B size |
Features:
All different shell size is available from 00B 0B 1B 2B 3B 4B
Mutipoles contacts from 2 pin 3 pin 4 pin 5 pin 6 pin 7 pin 8 pin 10 pin 12 pin 14 pin 16 pin
Technical Characteristics
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP 68 |
Endurance(shell) |
≥5000 mating cycles |
Our Company
RAYMO ELECTRONICS TECHNOLOGY LTD, established in 2010, located in shenzhen,China
Raymo connector is a professional supplier of high-end connector solutions, company have advanced
prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provide
innovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.
By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,
ROHS certification, CE certification, Reach certification and other authoritative certification.
RAYMO's high quality connectors are found in a variety of challenging applications and environments Applications
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
Our Exhibition
|
2020.9.14-16 |
Testing Expo, Shanghai |
|
2019 9.24-9.26 |
Testing Expo, Shanghai |
|
2018 11.12-11.15 |
Electronica Munich, Germany |
|
2017 9.11-9.16 |
NAB Show,Netherlands |
|
2016 4.11-4.15 |
HK Fair |
|
2015 10.2-10.7 |
ICEEB, Brasil |
|
2014 10.11-10.15 |
HK Fair |
|
2014 4.11-4.15 |
HK Fair |
Why Choose US?
100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save at least 50% cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
CE, ROHS2.0, SGS, ISO, Reach
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
