| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Raymo |
| إصدار الشهادات: | CE/ROHS/REACH/SGS/ISO9001 |
| رقم الموديل: | RM-FS2.0L0S.P09JS50Z |
| الحد الأدنى لكمية: | 1pcs |
| الأسعار: | 4.5-6.8 |
| تفاصيل التغليف: | كيس البولي ايثيلين + كرتون |
| وقت التسليم: | 3-5 أيام عمل |
| شروط الدفع: | L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 500pcs/5-7 أيام العمل |
| يكتب: | موصل سحب دفع دائري | حجم القشرة: | 0L 1L |
|---|---|---|---|
| الاتصالات: | 9 دبوس | لون: | مطلي بالكروم الأسود |
| جنس: | اتصالات لحام الذكور | طلب: | Arrialexa كاميرا صغيرة |
| أدخل المواد/العازل: | PPS/نظرة خاطفة | تصنيف الملكية الفكرية: | IP68 |
| إبراز: | PPS Circular Push Pull Connector,FS2 Circular Push Pull Connector,Arri Camera Circular Power Connector,FS2 Circular Push Pull Connector,Arri Camera Circular Power Connector |
||

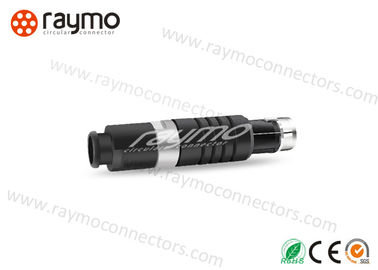

FS2 FG8 0B 1B Audio Video Arri Camera Waterproof Circular Push Pull Connector
MINI-SNAP SERIES L
The MINI-SNAP Series L is keyed by pin and groove. These Push-Pull circular connectors can be configured
in many different ways: a different variety of sizes and contact inserts are available.
Description:
RM-FS2.0L0S.P09JS50Z
Push pull circular cable connectors, 9 pins male solder contacts, male solder contacts, shell in black color,
50 cable collet for arri alexa mini camera
RM-L series circular push pull connectors main features:
1. Security of the Push-Pull self-latching system
2. Up to 4 sizes and 3 termination types
3.Choice of numerous plugs and receptacles
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 26 contacts
6. High packing density for space savings
7. IP6 ranking waterproof function
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
RM-L series Shell size and Contacts of circular push pull connector
|
RM-0L |
2pins 3pins 4pins 5pins 6pins 7pins 9pins |
|
RM-1L |
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16 |
Industry Application:
It is widely used on all kinds of medical equipments, specially for Studios and outside broadcasting, TV
and motion picture, HD and SD cameras , Remote camera control and military application
