| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | SGS, REACH, RoHS2.0, ISO:9001-2015, CE |
| رقم الموديل: | fvg.1w.310.clad62z |
| الحد الأدنى لكمية: | 5 قطعة/قطع |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس بلاستيكي وكرتون |
| وقت التسليم: | 5-7WDS |
| شروط الدفع: | Western Union ، L/C ، D/A ، D/P ، T/T |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| وصف: | CONN INLINE CLOP | حجم القشرة: | 1W |
|---|---|---|---|
| الاتصالات: | 10 أقطاب | عازل: | PPS |
| مسلسل: | دفع موصل السحب الدائري العميق | تَحمُّل: | 5000 مرة دفع الضغط |
| مادة الاتصال: | سبيكة النحاس مطلية بالذهب | ضمان: | 100 ٪ وظائف مثالية |
| إبراز: | FVG EVG Electronics Waterproof Connector,1W Shell Electronics Waterproof Connector,PPS Insulator 10 Pin Connector,1W Shell Electronics Waterproof Connector,PPS Insulator 10 Pin Connector |
||

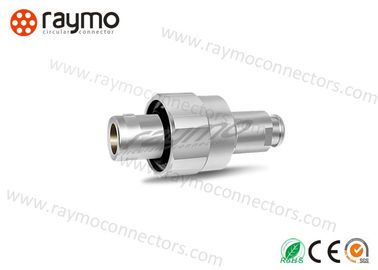

FVG EVG Gold Plated 10 Pin Electronics Waterproof Connector For Remote Camera Control
RM-FVG-1WC-310-JS52Z= FVG.1W.310.CLAD52Z
100% compatible with original one, 1W 10 pins male solder cup, Shell in Natural Chrome plated brass
CE, Rohs, Reach pass connectors
|
1
|
a variety of size optional(0W, 1W) |
| 2 |
solder or crimp core; straight or 90 degree
|
|
3
|
meet the most industries (like medical equipment, test equipment, machinery, audio and
video broadcasting, telecommunications and military, etc.) any one of the special
application requirements
|
| 4 |
360 degree complete EMC shielding, shock resistance, vibration resistance and
corrosion resistance |
|
Temperature Range |
- 40° C, +125° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP68 |
Endurance(shell) |
5000 mating cycles |
8 years focus on connectors
professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors
perfect and have relatively low prices
customized your own connectors according to your requirement
Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
Help customers to make model selection : Just e-mail us and give the prtion information
Q1. Can I have a sample ?
Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be
paid in advance and the cost will be refund after further order.
Q2. What about the prction lead time?
We have stock, fast delivery below 5,000 pieces.
Q3. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.
Q4. Is it OEM available?
Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take
about 20 to 30 days for new prct from mold design to final prction.
