| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | SGS, REACH, RoHS2.0, ISO:9001-2015, CE |
| رقم الموديل: | FGG إلى FHG |
| الحد الأدنى لكمية: | 5 قطعة/قطع |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس بلاستيكي وكرتون |
| وقت التسليم: | 5-7WDS |
| شروط الدفع: | Western Union ، L/C ، D/A ، D/P ، T/T |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| وصف: | ادفع سحب موصلات المزلاج الذاتي | حجم القشرة: | 00B M9 الزاوية اليمنى |
|---|---|---|---|
| طول الكابل: | 0.5m | لون الصدفة: | اللون الطبيعي / الأسود متاح |
| ضمان: | 5000 مرة دفع الضغط | تصنيف الملكية الفكرية: | IP50 |
| طلب: | الصوت والفيديو | درجة حرارة: | - درجة 50celsius ~ +200celsius |
| إبراز: | FHG Right Angle Connector,00B M9 Right Angle Connector,00B M9 Cable Connectors,00B M9 Right Angle Connector,00B M9 Cable Connectors |
||

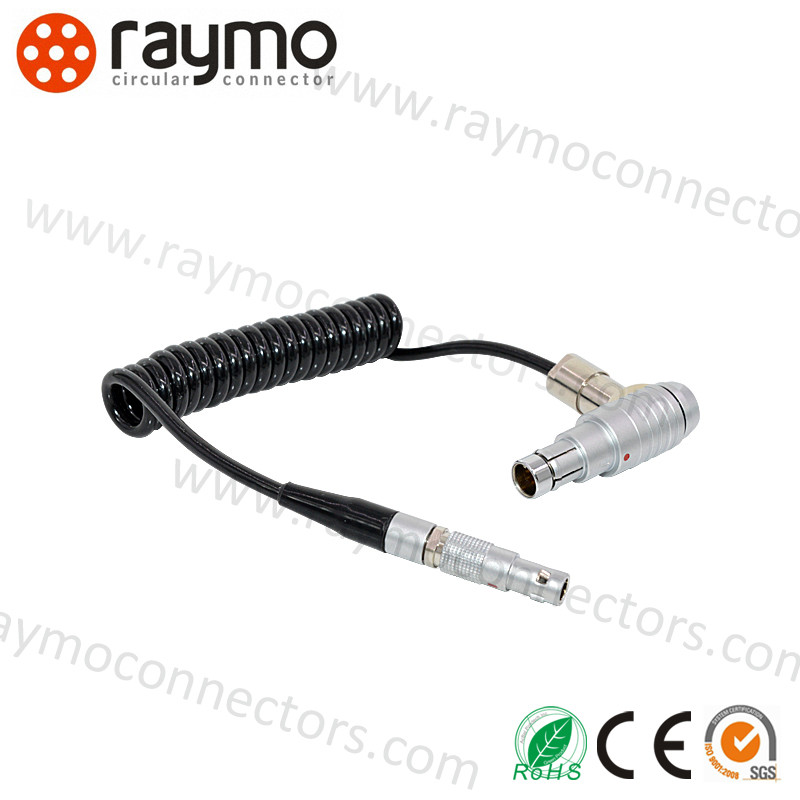

0.5m Cable 00B M9 FHG Right Angle Connector 5000 Time Push Pull
00 M9 cable connectors to FHG right angle connector ciecular push pull connectors
FGG straight circular push pull connectors with cable assembly to FHG male contacts. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-sub, USB, RJ45, Dtap, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO!
1. Push pull locking metal connector, cable to cable connector, free socket, inline connector
2. can be 100% compatible with original connector
3. can be with different degree , such us 30, 45, 60, 90, 135,
4. can plated with white or black chrome,
5. 360 angle screening for full EMC shielding.
6. ISO:9001-2015 CE RoHS2.0 SGS REACH
B Series Connectors
Low voltage push-pull connectors for data, signal, electrical and power use!
Rmeeco connectors are used in instrumentation, medical devices, and anywhere a high density,
high reliability, quick mating connector is needed.These high precision connectors. With a life span
greater than 5000 insertions, complete EMC shielding, shock resistance,
vibration resitance, and corrosion resistance this is the highest quality connector on the market.
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
Metal push pull self latch connectors are widely used in the automotive, electric power, high speed cameta, medical,
automation, as well as the electrical service industry. We design and prce according to international and the U.S.
military standard, our prcts can substitute European, US and Taiwan connectors, own the same quality.
Why choose RAYMO Circular Connector :
A: Free cable solutions
B: 100% compatible lemo connector
C: OEM or ODM accepted
D: Help you save at least 50% cost, Bend relief of plug are free
E: Cable assembly offer
F: Free sample for confirmation
G: Fast delivery time to help you save prction time
