| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | CE/ROHS/SGS/ISO:9001-2015 |
| رقم الموديل: | phg.2kc.319.clld52z |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس بلاستيكي وكرتون |
| وقت التسليم: | 5-7 أيام عمل |
| شروط الدفع: | T/T ، Western Union ، D/A ، D/P ، L/C ، Moneygram |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| اسم PRCT: | IP68 موصل سحب الدفع المائي | نموذج: | مقبس جبل كابل phg |
|---|---|---|---|
| رقم الاتصال.: | 2-32 دبابيس | حجم القشرة: | 0K ، 1K ، 2K ، 3K |
| لون الصدفة: | قذيفة طبيعية أو أسود | عازل: | PPS ، نظرة خاطفة |
| جنس: | الذكور الإناث | نوع الاتصال: | اتصالات لحام/ثنائي الفينيل متعدد الكلور/90 درجة ثنائي الفينيل متعدد الكلور |
| تصنيف الملكية الفكرية: | IP68 | تم تجميع الكابل أم لا: | نعم |
| إبراز: | IP68 Waterproof Cable Connectors,IP68 Metal Cable Connectors,IP68 Industrial Circular Connectors,IP68 Metal Cable Connectors,IP68 Industrial Circular Connectors |
||
Silicone Sealing IP68 Waterproof Cable Connector Compressive Strength
Compact Waterproof Cable Connector Silicone Sealing High Tensile Compressive Strength
Prct Description

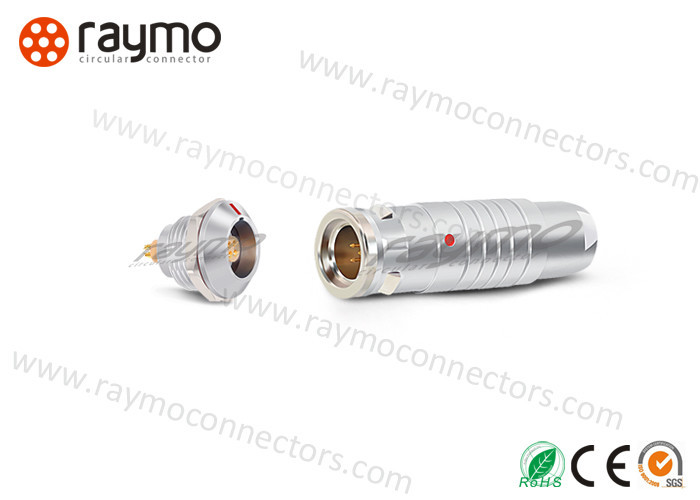

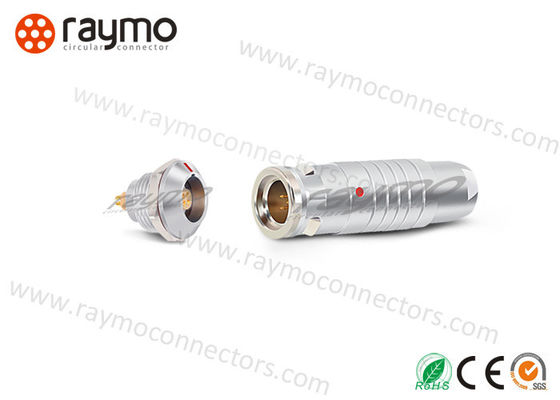

RM-K Series 0K 1K 2K 3K series PHG cable mount sokcet
|
Part No.: |
PHG.2K.319.CLLD52Z/ RM-PHG-2KC-319KS52Z |
|
Prct Description: |
2K size connector, PHG cable mount socket, 19pin female contact, 52 cable collet, nut for a bend relief, natural chrome plated shell in brass |
K series Push pull locking metal connector, cable to cable connector, free socket, inline connector
|
Main Futures |
|
|
1 |
Waterproof Secure high performance push-pull Self-locking system |
|
2 |
100% compatible with original Lemo K series connector |
|
3 |
can plated with white or black chrome |
|
4 |
2-32pin available |
|
5 |
Available solder and PCB or right angle PCB contact. |
|
6 |
360° EMC shield |
|
7 |
Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
|
Technical Characteristics |
|||
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144hr |
|
Climatical Category |
55/175/21 |
Shielding (min) |
> 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
|
IP Rating |
IP 68 |
Endurance(shell) |
≥5000 mating cycles |
|
Shell size |
Contacts no. ( Both with Solder & PCB type ) |
|||||||||||
|
0K |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
|
|
|
|
|
|
1K |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
|
|
2K |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
19 |
|
3K |
3 |
4 |
6 |
8 |
9 |
10 |
12 |
14 |
14 |
16 |
18 |
21 |
|
26 |
30 |
32 |
|
|
|
|
|
|
|
|
|
|
Our Company
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
Our Exhibition
|
2020.11 |
Electronica Munich, Germany |
|
2019 9.24-9.26 |
Testing Expo, Shanghai |
|
2018 11.12-11.15 |
Electronica Munich, Germany |
|
2017 9.11-9.16 |
NAB Show,Netherlands |
|
2016 4.11-4.15 |
HK Fair |
|
2015 10.2-10.7 |
ICEEB, Brasil |
|
2014 10.11-10.15 |
HK Fair |
|
2014 4.11-4.15 |
HK Fair |
Why Choose US?
100% compatible lemo& connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save your cost
Fast delivery: 3-15 working days
Cable assembly offer,help you save prction time
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
