| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| رقم الموديل: | RM-M8-3P-S |
| الحد الأدنى لكمية: | 1piece |
| الأسعار: | negotiable |
| تفاصيل التغليف: | 100 قطعة / الشركة التونسية للملاحة |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | D / A ، D / P ، T / T ، ويسترن يونيون ، موني جرام ، L / C. |
| القدرة على العرض: | 5000 قطعة في الأسبوع |
| اسم PRCT: | رابط إمرأة من طراز M8 | عدد جهات الاتصال: | 3 دبابيس |
|---|---|---|---|
| نوع التثبيت: | لوحة جبل | طريقة الإنهاء: | لحام |
| الاتصال الجنس: | أنثى | تصنيف IP: | IP67 |
| التصنيف الحالي: | 3A | اتجاه الجسم: | مستقيم |
| إبراز: | Circular M8 Panel Mount Connector,Female M8 Panel Mount Connector,Miniature M8 3 Pin Female Connector,Female M8 Panel Mount Connector,Miniature M8 3 Pin Female Connector |
||
Description for miniature circular panel mount socket M8 3 pins female connector
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for miniature circular panel mount socket M8 3 pins female connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | M8 waterproof connectors |
| Connector size | M8 |
| Contact Gender | pole(female) |
| Number of contacts | 3-8 contacts |
| Mounting Style | Panel mount |
| Termination Style | Solder |
| Current Rating | 3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

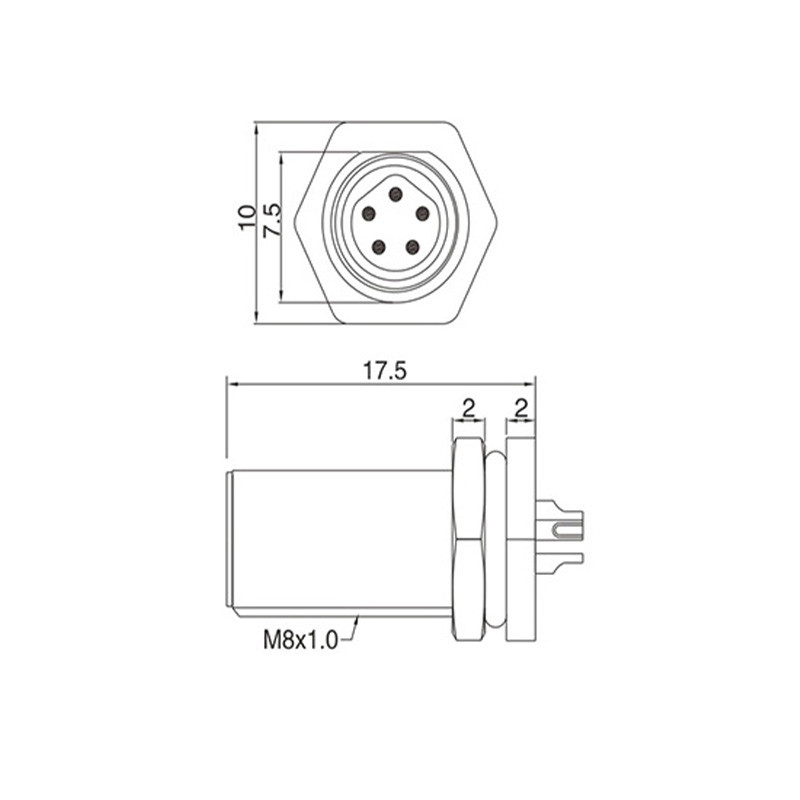

Electrical data & Mechanical data for miniature circular panel mount socket M8 3 pins female connector
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for miniature circular panel mount socket M8 3 pins female connector
Application for miniature circular panel mount socket M8 3 pins female connector
Raymo company specialized in many kinds of alternative connector. All our connectors can work with original well, since 2010, we keep improving our technic and offer customer with high quality prcts, for the return, we have got many good feedbacks and build a long-term and stable cooperation ship.
Our advantage for miniature circular panel mount socket M8 3 pins female connector
miniature circular panel mount socket M8 3 pins female connector
