| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| رقم الموديل: | RM-M12-8 |
| الحد الأدنى لكمية: | 1piece |
| الأسعار: | negotiable |
| تفاصيل التغليف: | 100 قطعة / الشركة التونسية للملاحة |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | D / A ، D / P ، T / T ، ويسترن يونيون ، موني جرام ، L / C. |
| القدرة على العرض: | 5000 قطعة في الأسبوع |
| اسم PRCT: | مرفق مقاوم للماء M12 | عدد جهات الاتصال: | 8 دبابيس |
|---|---|---|---|
| نوع التثبيت: | جبل الكابل | طريقة الإنهاء: | لحام |
| الاتصال الجنس: | ذكر | تصنيف IP: | IP67 |
| التصنيف الحالي: | 1.5A | اتجاه الجسم: | مستقيم |
| إبراز: | M12 Elbow Miniature Circular Connectors,Waterproof Miniature Circular Connectors,8 Pin M12 Circular Connectors,Waterproof Miniature Circular Connectors,8 Pin M12 Circular Connectors |
||

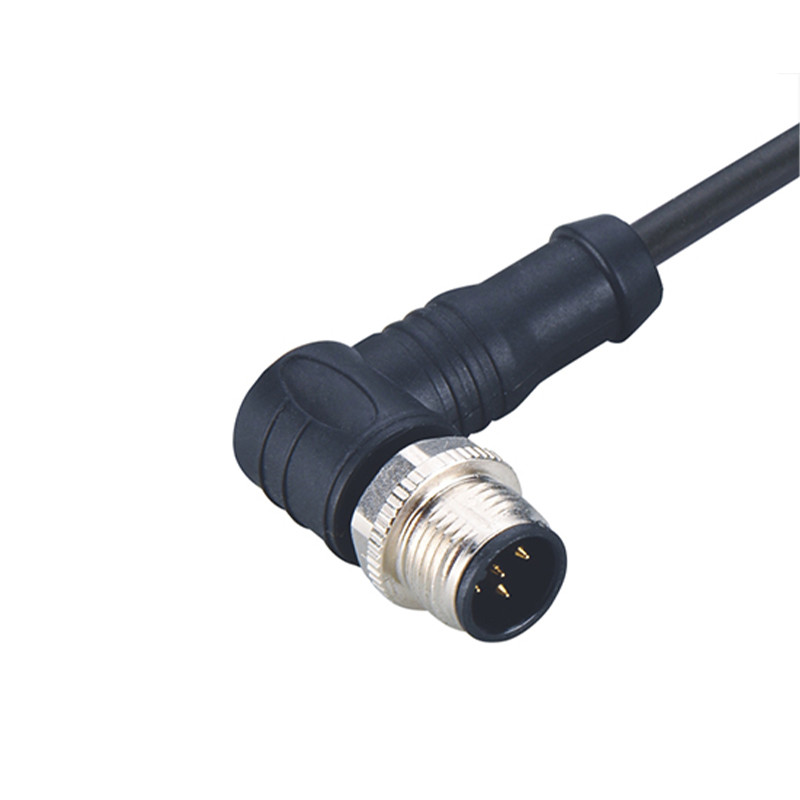

Description for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular screw waterproof connectors |
| Connector size | M12 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 8 contacts |
| Mounting Style | Straight/Elbow |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |
Electrical data & Mechanical data for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
Application for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
Our advantage for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
FAQ
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
-Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
