| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| رقم الموديل: | RM-M12-8 |
| الحد الأدنى لكمية: | 1piece |
| الأسعار: | negotiable |
| تفاصيل التغليف: | 100 قطعة / الشركة التونسية للملاحة |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | D / A ، D / P ، T / T ، ويسترن يونيون ، موني جرام ، L / C. |
| القدرة على العرض: | 5000 قطعة في الأسبوع |
| اسم PRCT: | موصل مقاوم للماء M12 | عدد جهات الاتصال: | 8 دبابيس |
|---|---|---|---|
| زاوية: | الزاوية اليمنى | طريقة الإنهاء: | جندى / ثنائي الفينيل متعدد الكلور |
| الاتصال الجنس: | ذكر | تصنيف IP: | IP67 |
| التصنيف الحالي: | 1.5-3A | اتجاه الجسم: | مستقيم/كوع |
| إبراز: | M12 Elbow Circular Waterproof Connector,8 Pin M12 Right Angle Connector,Actuators M12 Right Angle Connector,8 Pin M12 Right Angle Connector,Actuators M12 Right Angle Connector |
||

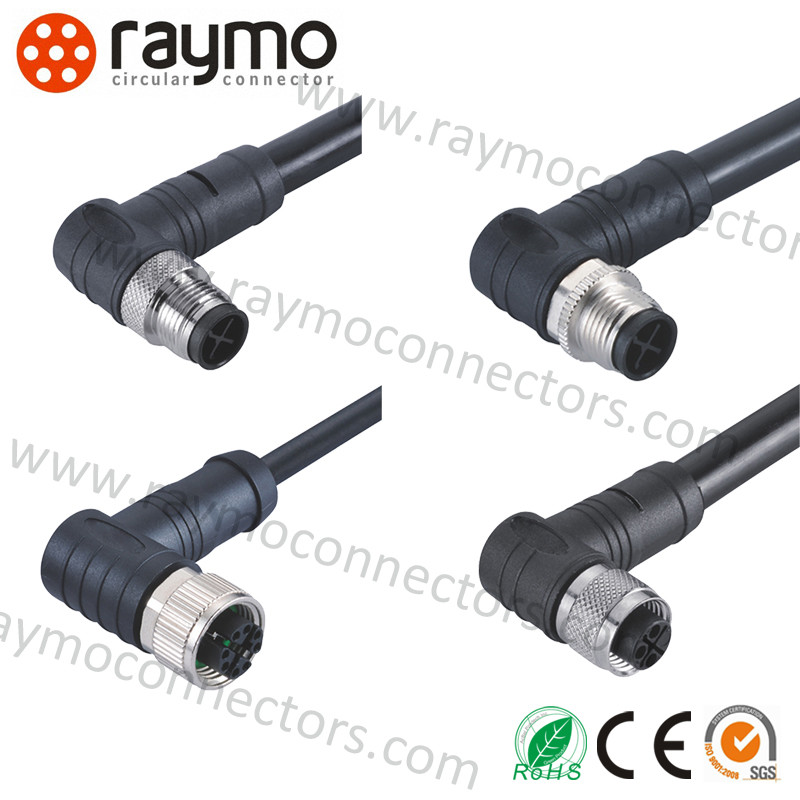

Description for circular waterproof m12 elbow right angle 8 pin for test&measurement
Raymo M12 circular connectors facilitate the simple and cost-effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automatio, such as sensor & actuator, CANopen, DeviceNET, Profibus, Profinet, EtherCAT, Ethernet, Interbus, CC-Link, Motor servo, Digital camera, Railway process control,,, and so on.
Specification for circular waterproof m12 elbow right angle 8 pin for test&measurement
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular waterproof connectors |
| Connector size | M12 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 8 contacts |
| Mounting Style | Elbow/right angle |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |
Electrical data & Mechanical data for circular waterproof m12 elbow right angle 8 pin for test&measurement
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for circular waterproof m12 elbow right angle 8 pin for test&measurement
Application for circular waterproof m12 elbow right angle 8 pin for test&measurement
Medical industry
Our advantage for circular waterproof m12 elbow right angle 8 pin for test&measurement
FAQ for circular waterproof m12 elbow right angle 8 pin for test&measurement
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-Does your company a professional manufacturer?
A: Yes, we specialized in prcing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 7 years.
-Can I use my own logo on the prcts?
A:Yes, customers' logo, size and design are acceptable, OEM&ODM are welcomed.
Drawing for panel mount m12 connector miniature circular waterproof sensor connector
