| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Raymo |
| إصدار الشهادات: | CE/ROHS/REACH/SGS/ISO9001 |
| رقم الموديل: | Heg.0b.302.cll |
| الحد الأدنى لكمية: | 1pcs |
| الأسعار: | 3.5-4.5 |
| تفاصيل التغليف: | كيس البولي ايثيلين + كرتون |
| وقت التسليم: | 3-5 أيام عمل |
| شروط الدفع: | L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 500pcs/5-7 أيام العمل |
| يكتب: | موصل سحب دفع دائري | حجم القشرة: | 0B 1B 2B 3B 4B |
|---|---|---|---|
| الاتصالات: | 2 دبوس | لون: | مطلي بالكروم الطبيعي |
| جنس: | اتصالات لحام الأنثى | طلب: | كاميرا عالية السرعة |
| أدخل المواد/العازل: | PPS | تصنيف الملكية الفكرية: | IP54 |
| إبراز: | HGG Circular Cable Connectors,HEG 2 Pin Circular Power Connector,HGG 2 Pin Circular Connector,HEG 2 Pin Circular Power Connector,HGG 2 Pin Circular Connector |
||

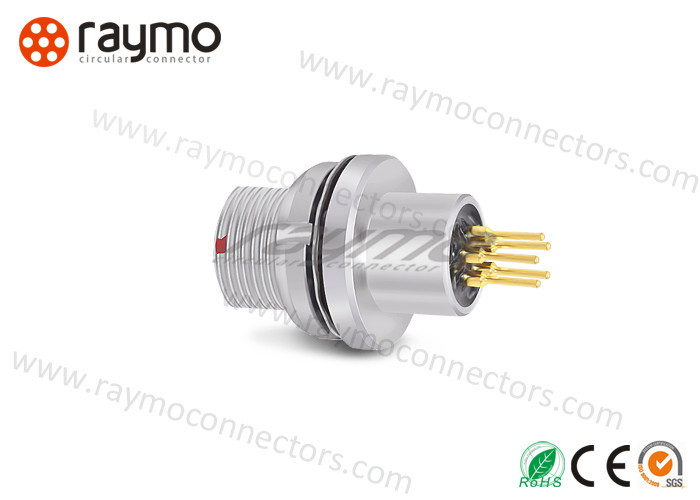

PPS Insulator HEG HGG Circular Cable Connectors 2B Panel 2 Pin
HEG HGG 0B 1B 2B Panle Metal Socket Circular Push Pull Connector
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
7. Protection index (mated) :IP50
RM-B series circular connectors provide the following main features:
1. Security of the Push-Pull self-latching system
2. Multiple key options to avoid cross mating
3. keying system («G» key standard)of similar connectors for connector alignment
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 46 contacts
6. Solder, print contacts (straight or elbow)
7. High packing density for space savings
RM-B series Shell size and Contacts of circular push pull connector
|
00B |
2pins 3pins 4pins |
|
0B |
2pins 3pins 4pins 5pins 6pins 7pins 9pins |
|
1B |
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16 |
|
2B |
2pins 3pins 4pins 5pins 6pins 7pins 8pins 10pins 12pins 14pins 16pins 18pins 19pins 26 |
|
3B |
3pins 4pins 7pins 8pins 10pins 12pins 14pins 16pins 18pins 21pins 30pins |
Industry Application:
It is widely used on all kinds of medical equipments, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications prct line.
