| مكان المنشأ: | شنتشن ، قوانغدونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS, Reach, SGS, ISO:9001-2015 |
| رقم الموديل: | OHS-BC-1-4/10-P1-1-B |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | USD 6.99USD/piece |
| تفاصيل التغليف: | كيس البولي ايثيلين والكرتون |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | Western Union ، T/T ، Moneygram ، D/P ، D/A ، Moneygram ، L/C |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| المعالجة الفرعية: | موصل سلسلة OHS الروسية | نوع الموصل: | سدادة |
|---|---|---|---|
| توجيه: | مستقيم | نوع الاتصال: | دبوس أنثى |
| عدد المواقف: | 4 | ترتيب الاتصال: | 10 |
| إبراز: | Russian OHS series Military Circular Connectors,OHS-BC-1-4/10-P1-1-B Connectors,OHS-BC-1-4/10-P1-1-B,OHS-BC-1-4/10-P1-1-B Connectors,OHS-BC-1-4/10-P1-1-B |
||
OHS-BC-1-4/10-P1-1-B Russian OHS series military circular connectors Description
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology.
Connectors of OHS-BC-1(2) type (plugs and receptacles) are designed for use in DC and AC circuits (up to 3 MHz) with voltage up to 250 V (amplitude value)
OHS-BC-1-4/10-P1-1-B Russian OHS series military circular connectors main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
OHS-BC-1-4/10-P1-1-B Russian OHS series military circular connectors Parameter
|
Category |
Military Circular Connectors |
|
Part number |
OHS-BC-1-4/10-P1-1-B |
|
Connector Type |
Plug |
|
Orientation |
Straight |
|
Contact Type |
Female Pin |
|
Number of Positions |
4 |
|
Fastening Type |
Threaded |
|
Mounting Type |
Free |
|
Contact Termination |
Crimp |
|
Protection Rating |
IP67 |
OHS-BC-1-4/10-P1-1-B Russian OHS series military circular connectors tecnical performance
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥1000MΩ(in normal situation) |
|
Ambient temperature |
’-60℃~85℃ |
|
Vibration |
1-5000HZ 20g |
|
Shocking |
once 1000g, repeatedly 100g |
|
Contact diameter |
ø1.0mm |
|
Mechanical life |
250times |
|
Working time |
5000hours |

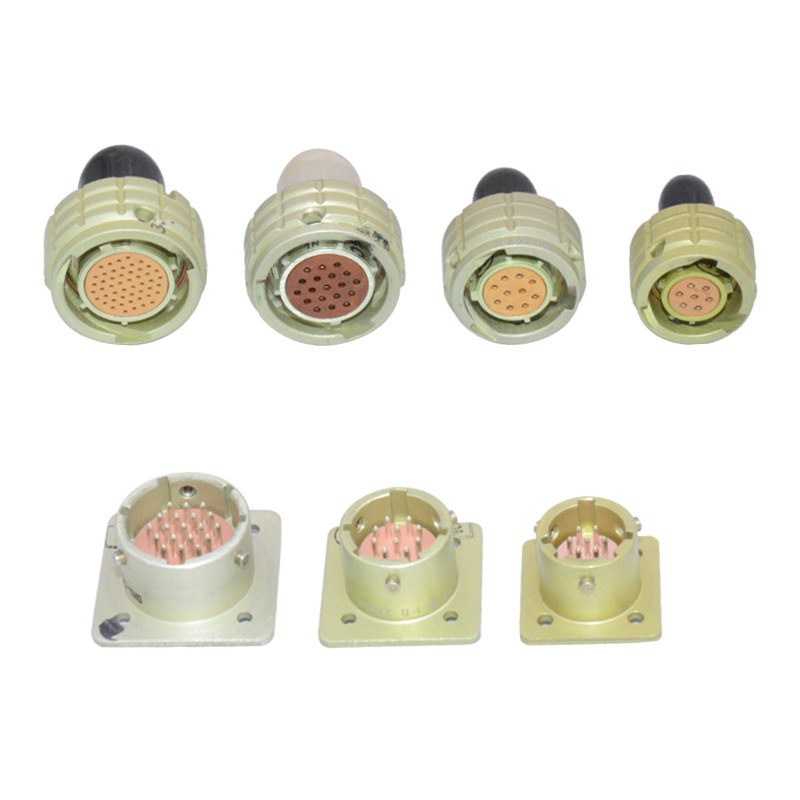

OHS-BC-1-4/10-P1-1-B Russian OHS series military circular connectors pictures
OHS-BC-1-4/10-P1-1-B Russian OHS series military circular connectors Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
