| مكان المنشأ: | شنتشن ، قوانغدونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS, Reach, SGS, ISO:9001-2015 |
| رقم الموديل: | онц-1-4/10-D-1-1-، OHS-BC-1-4/10-B1-1-B |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | 4.99-11.99USD/piece |
| تفاصيل التغليف: | كيس البولي ايثيلين والكرتون |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | Western Union ، T/T ، Moneygram ، D/P ، D/A ، Moneygram ، L/C |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| اسم PRCT: | روابط سلسلة روسية-1 | نوع الموصل: | مأخذ ذكر |
|---|---|---|---|
| توجيه: | شفة مربع محكم | رقم الاتصال: | 4 |
| الحياة الميكانيكية: | 250TIMES | وقت العمل: | 5000 ساعة |
| إبراز: | ОНЦ-БС-1 sereis connector,ОНЦ-БС-1-4/10-В1-1-В,ОНЦ-БС-1-4/10-В1-1-В Connector,ОНЦ-БС-1-4/10-В1-1-В,ОНЦ-БС-1-4/10-В1-1-В Connector |
||
Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits Description
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology.
The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.
Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits Parameter
|
Category |
Military Circular Connectors |
|
Part number |
OHS-BC-1-7/12-B1-1-B |
|
Connector Type |
Receptacle |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
7 |
|
Fastening Type |
Threaded |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Crimp |
|
Protection Rating |
IP67 |
Russian part number and Raymo part number reference for Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits
| Russian part number | Raymo part number |
| ОНЦ-БС-1-4/10-В1-1-В | OHS-BC-1-4/10-B1-1-B |
| ОНЦ-БС-1-4/10-Р12-1-В | OHS-BC-1-4/10-P1-1-B |
| ОНЦ-БС-1-7/12-В1-1-В | OHS-BC-1-7/12-B1-1-B |
| ОНЦ-БС-1-7/12-Р12-1-В | OHS-BC-1-7/12-P2-1-B |
| ОНЦ-БС-1-10/14-В1-1-В | OHS-BC-1-10/14-B1-1-B |
| ОНЦ-БС-1-10/14-Р12-1-В | OHS-BC-1-10/14-P2-1-B |
| ОНЦ-БС-1-19/18-В1-1-В | OHS-BC-1-19/18-B1-1-B |
| ОНЦ-БС-1-19/18-Р12-1-В | OHS-BC-1-19/18-P2-1-B |
| ОНЦ-БС-1-32/22-В1-1-В | OHS-BC-1-32/22-B1-1-B |
| ОНЦ-БС-1-32/22-Р12-1-В | OHS-BC-1-32/22-P2-1-B |
| ОНЦ-БС-1-50/27-В1-1-В | OHS-BC-1-50/27-B1-1-B |
| ОНЦ-БС-1-50/27-Р12-1-В | OHS-BC-1-50/27-P2-1-B |
Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits tecnical performance
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥1000MΩ(in normal situation) |
|
Ambient temperature |
’-60℃~85℃ |
|
Vibration |
1-5000HZ 20g |
|
Shocking |
once 1000g, repeatedly 100g |
|
Contact diameter |
ø1.0mm |
|
Mechanical life |
250times |
|
Working time |
5000hours |

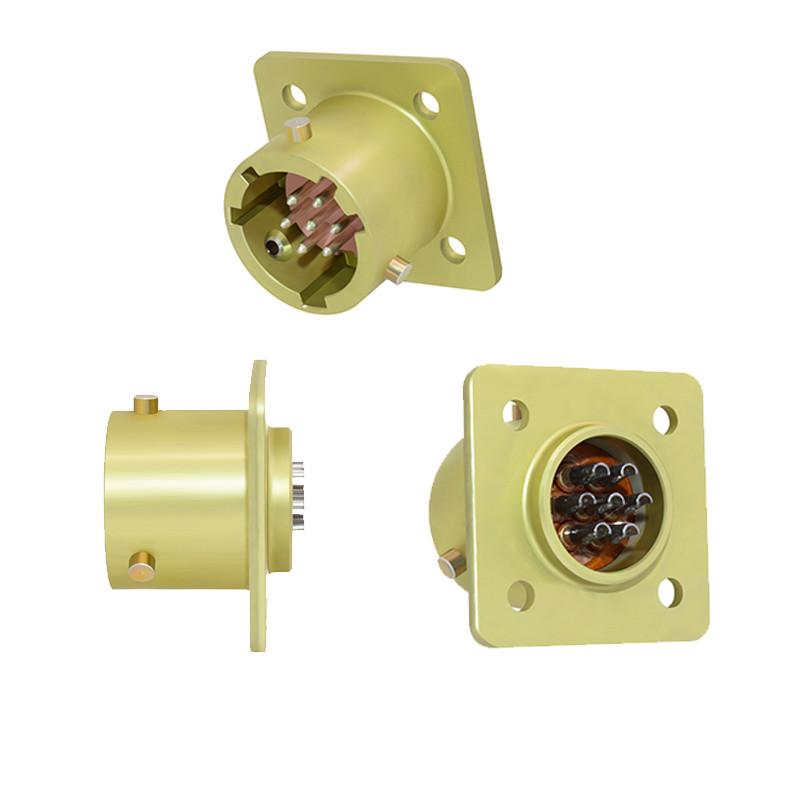

Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits pictures
Russian ОНЦ-БС-1 sereis connector ОНЦ-БС-1-4/10-В1-1-В For DC And AC Circuits Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED
As a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.
