| مكان المنشأ: | شنتشن ، قوانغدونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS, Reach, SGS, ISO:9001-2015 |
| رقم الموديل: | онц-1-10/14-DE1-1-، OHS-BC-1-10/14-B1-1-- |
| الحد الأدنى لكمية: | 1 قطعة/قطعة |
| الأسعار: | 4.99-12.99USD/piece |
| تفاصيل التغليف: | كيس البولي ايثيلين والكرتون |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | Western Union ، T/T ، Moneygram ، D/P ، D/A ، Moneygram ، L/C |
| القدرة على العرض: | 5000 قطعة / أسبوع |
| اسم PRCT: | روابط سلسلة روسية-1 | بديل ل: | سلسلة الأمفينول بونتس BS-1 |
|---|---|---|---|
| نوع الموصل: | مأخذ ذكر | توجيه: | شفة مربع محكم |
| رقم الاتصال: | 10 | وقت العمل: | 5000 ساعة |
| إبراز: | Ultra-Small Russian Military Connector,Amphenol Russian Military Connector,ОНЦ-БС 1(2) Series Connector,Amphenol Russian Military Connector,ОНЦ-БС 1(2) Series Connector |
||
Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector Description
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology.
The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.
Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector Parameter
|
Category |
Military Circular Connectors |
|
Part number |
OHS-BC-1-7/12-B1-1-B |
|
Connector Type |
Receptacle |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
7 |
|
Fastening Type |
Threaded |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Crimp |
|
Protection Rating |
IP67 |
Russian part number and Raymo part number reference for Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector
1- without tail model part number
| Russia P/N | China P/N | Amphenol P/N |
| ОНЦ-БС-1-4/10-В1-1-В | OHS-BC-1-4/10-B1-1-В | ONTS-BS-1-4/10-V1-1-V |
| ОНЦ-БС-1-7/12-В1-1-В | OHS-BC-1-7/12-B1-1-В | ONTS-BS-1-7/12-V1-1-V |
| ОНЦ-БС-1-10/14-В1-1-В | OHS-BC-1-10/14-B1-1-В | ONTS-BS-1-10/14-V1-1-V |
| ОНЦ-БС-1-19/18-В1-1-В | OHS-BC-1-19/18-B1-1-В | ONTS-BS-1-19/18-V1-1-V |
| ОНЦ-БС-1-32/22-В1-1-В | OHS-BC-1-32/22-B1-1-В | ONTS-BS-1-32/22-V1-1-V |
| ОНЦ-БС-1-50/27-В1-1-В | OHS-BC-1-50/27-B1-1-В | ONTS-BS-1-50/27-V1-1-V |
2- with unsheild sraight tail model part number
| Russia P/N | China P/N | Amphenol P/N |
| ОНЦ-БС-1-4/10-Р12-1-В | OHS-BC-1-4/10-P2-1-В | ONTS-BS-1-4/10-R12-1-V |
| ОНЦ-БС-1-7/12-Р12-1-В | OHS-BC-1-7/12-P2-1-В | ONTS-BS-1-7/12-R12-1-V |
| ОНЦ-БС-1-10/14-Р12-1-В | OHS-BC-1-10/14-P2-1-В | ONTS-BS-1-10/14-R12-1-V |
| ОНЦ-БС-1-19/18-Р12-1-В | OHS-BC-1-19/18-P2-1-В | ONTS-BS-1-19/18-R12-1-V |
| ОНЦ-БС-1-32/22-Р12-1-В | OHS-BC-1-32/22-P2-1-В | ONTS-BS-1-32/22-R12-1-V |
| ОНЦ-БС-1-50/27-Р12-1-В | OHS-BC-1-50/27-P2-1-В | ONTS-BS-1-50/27-R12-1-V |
Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector tecnical performance
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥1000MΩ(in normal situation) |
|
Ambient temperature |
’-60℃~85℃ |
|
Vibration |
1-5000HZ 20g |
|
Shocking |
once 1000g, repeatedly 100g |
|
Contact diameter |
ø1.0mm |
|
Mechanical life |
250times |
|
Working time |
5000hours |

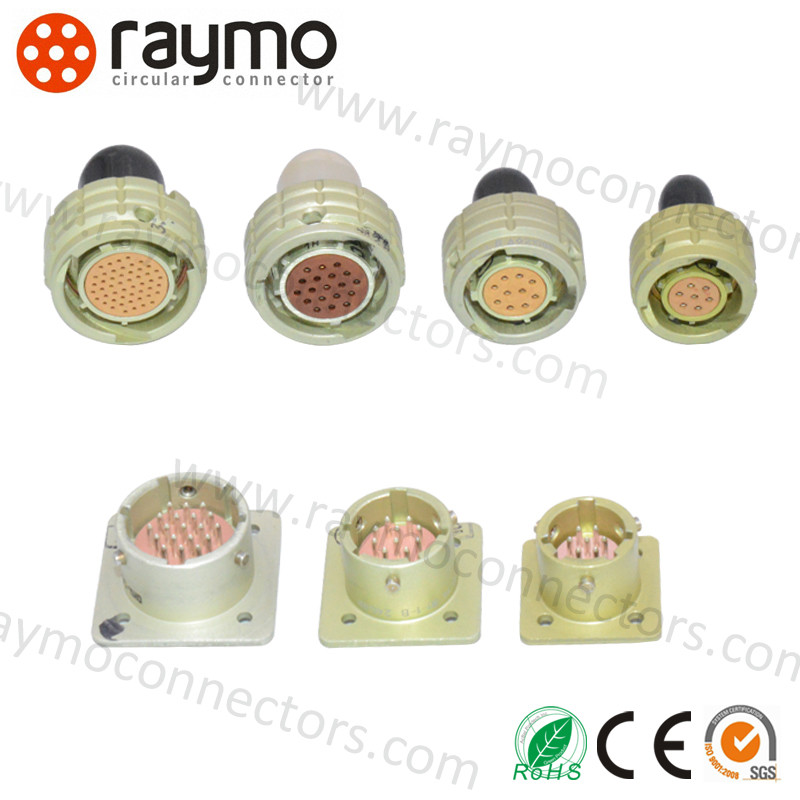

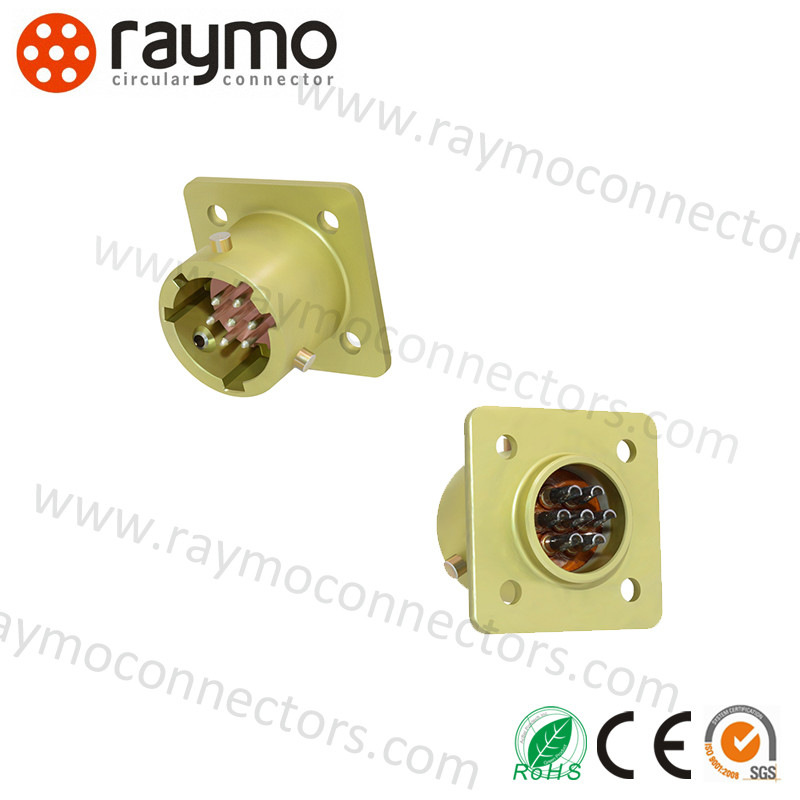

Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector pictures
Amphenol ONTS-BS-1 Ultra-Small ОНЦ-БС 1(2) Series Russian Military Connector Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
