| مكان المنشأ: | قوانغدونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| رقم الموديل: | RM-DBP-AF1C-A15-ks |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | $7.47-8.28 |
| يكتب: | دين | جنس: | أنثى |
|---|---|---|---|
| حجم القشرة: | AF/1031 | رقم الاتصال.: | 15pins |
| عازل: | PPS/نظرة خاطفة | نوع الاتصال: | اتصالات لحام الأنثى |
| تصنيف IP: | IP68 | تَحمُّل: | 5000 دورات التزاوج |
| رطوبة: | ما يصل إلى 95 ٪ عند 60 درجة مئوية/140F | نطاق درجة الحرارة: | -65 درجة مئوية ، +200 درجة مئوية |
| مقاومة الاهتزاز: | 15 جرام [10 هرتز - 2000 هرتز] | مقاومة الصدمة: | 100 غرام [6 مللي ثانية] |
| تجربة بخاخ الملح: | > 96 ساعة | الفئة المناخية: | 50/175/21 |
| التدريع: | > 75 ديسيبل [في 10 ميجا هرتز] ،> 40 ديسيبل [في 1 جيجاهرتز] | ||
| إبراز: | DIN female circular connector 15 pins,IP68 waterproof push pull connector,AF1031 circular push pull connector,IP68 waterproof push pull connector,AF1031 circular push pull connector |
||

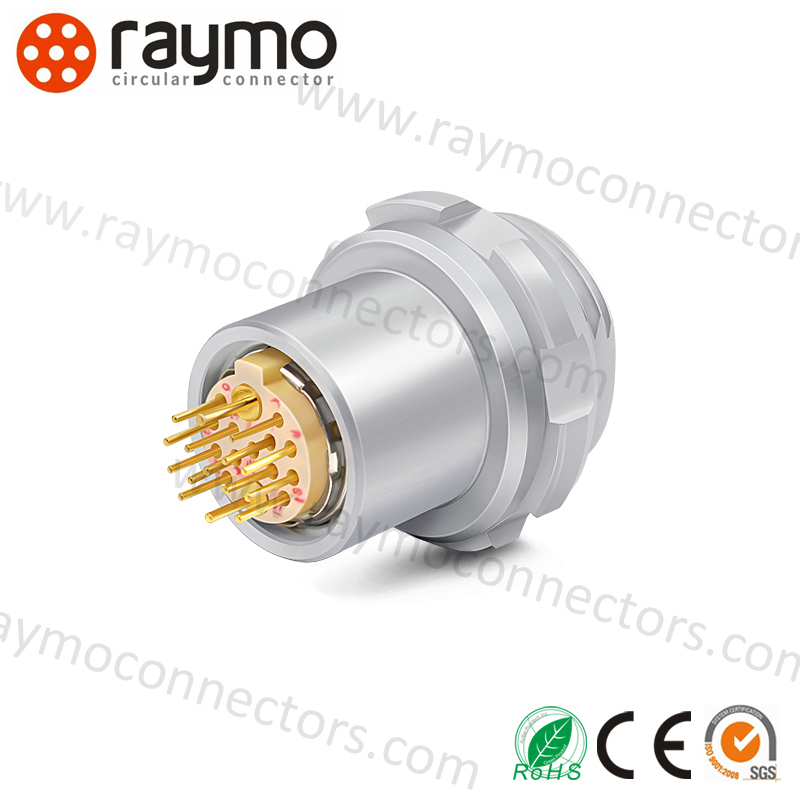

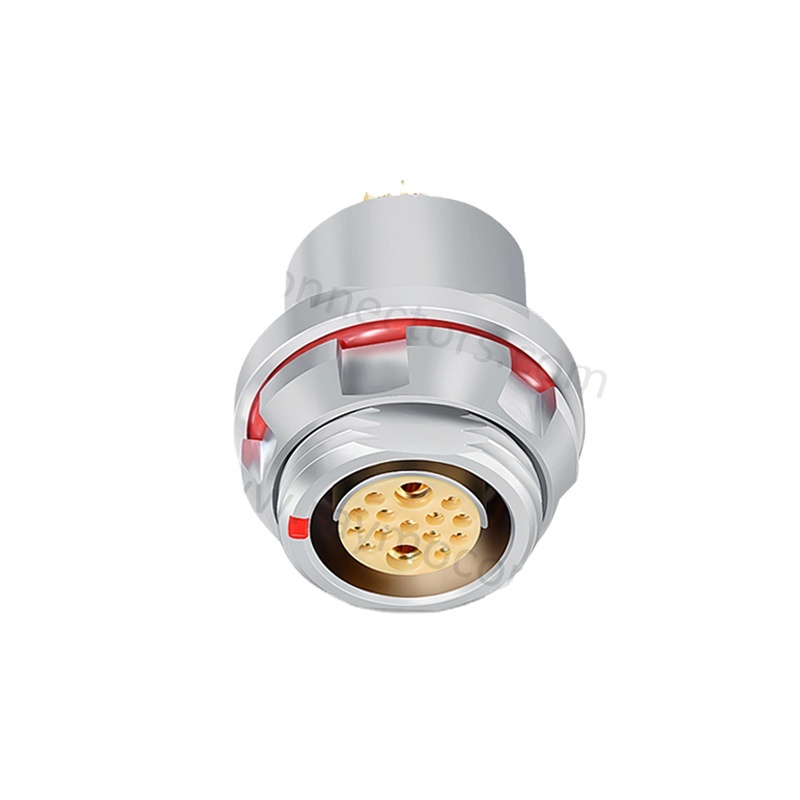

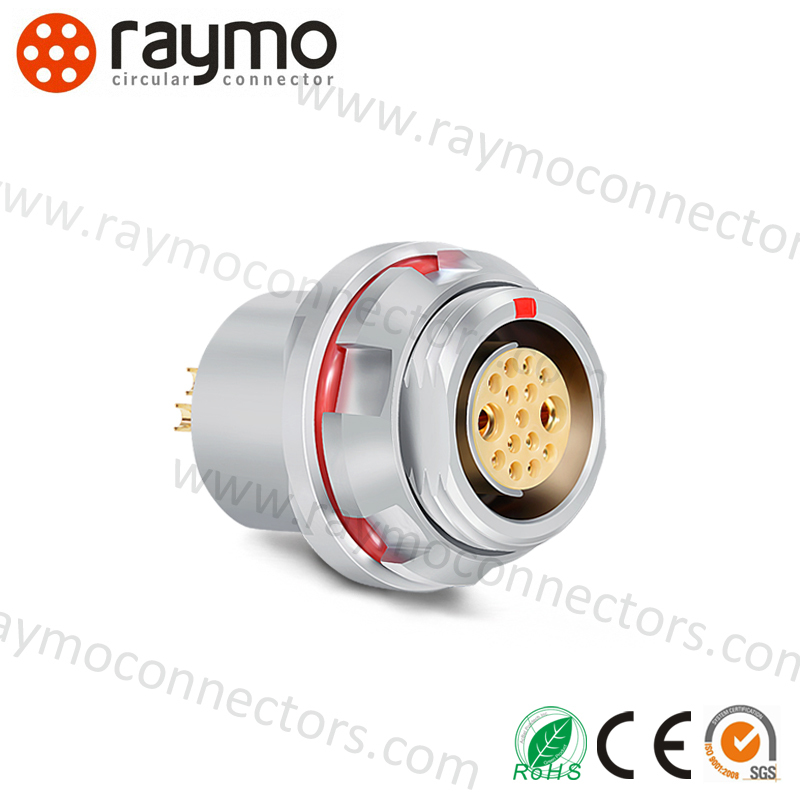

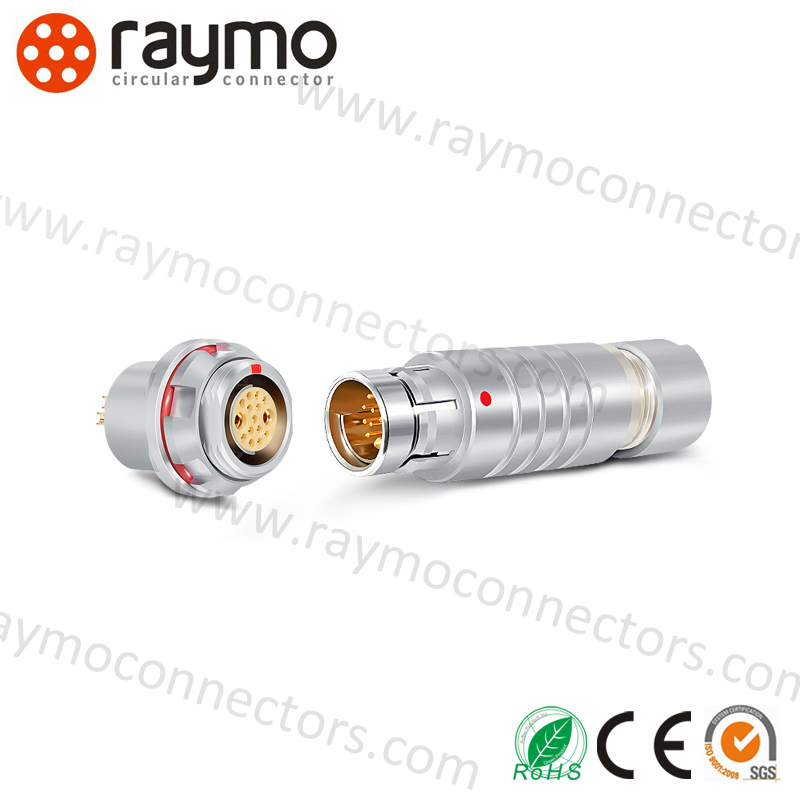

| Attribute | Value |
|---|---|
| Type | DIN |
| Application | Audio & Video |
| Gender | Female |
| Connector Type | Circular Push Pull connector |
| Shell size | AF/1031 |
| Contact No. | 15pins |
| Insulator | PPS/PEEK |
| Contact type | Female solder contacts |
| IP Rating | IP68 |
| Warranty | 5000 Times Push Pull |
| MOQ | 1PC |
| Endurance(shell) | 5000 mating cycles | Humidity | up to 95% at 60° C/140F |
| Temperature Range | -65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [6 ms] | Salt spray corrosion test | >96 hr |
| Climatical Category | 50/175/21 | Shielding (min) | >75 dB [at 10 MHz], >40 dB [at 1 GHz] |
Raymo connector is a professional supplier of high-end connector solutions, with advanced production equipment, testing equipment, high-end CNC lathe and a professional team. We are dedicated to providing innovative solutions and high quality products for industrial, telecommunication, military, medical and automotive markets.
By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification, ROHS certification, CE certification, Reach certification and other authoritative certifications.
Loading Port: Shenzhen, China
Goods can be shipped by air shipping, sea and other methods. Delivery time depends on order quantity and exact items.
