| اسم العلامة التجارية: | Raymo |
|---|---|
| إصدار الشهادات: | CE/RoHs/REACH/ISO9001:2015 |
| Model Number: | RM-J30J |
| وثيقة: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| الأسعار: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| شروط الدفع: | T/T ، D/A ، D/P ، Western Union ، Moneygram |
| Supply Ability: | 5000PCS Per Month |
| نوع المنتج: | الموصل | Palting: | صفيحة ذهبية |
|---|---|---|---|
| إنهاء الاتصال: | تجعيد | التصنيف الحالي: | 3A |
| الاتصال الجنس: | قابس الذكور/وعاء الإناث | الاتصال: | 9 ، 15 ، 21 ، 25 ، 31 ، 37 ، 51 ، 66 ، 74 ، 100 |
| نطاق درجة الحرارة: | -55～+125 درجة مئوية | مادة: | معدن |
| إبراز: | J30J series gold plated connector,1.27mm spacing J30J connector,3A current rating J30J connector,1.27mm spacing J30J connector,3A current rating J30J connector |
||
| Attribute | Value |
|---|---|
| Product Type | Connector |
| Plating | Gold Plating |
| Contact Termination | Crimp |
| Current Rating | 3A |
| Contact Gender | Male Plug/female Receptacle |

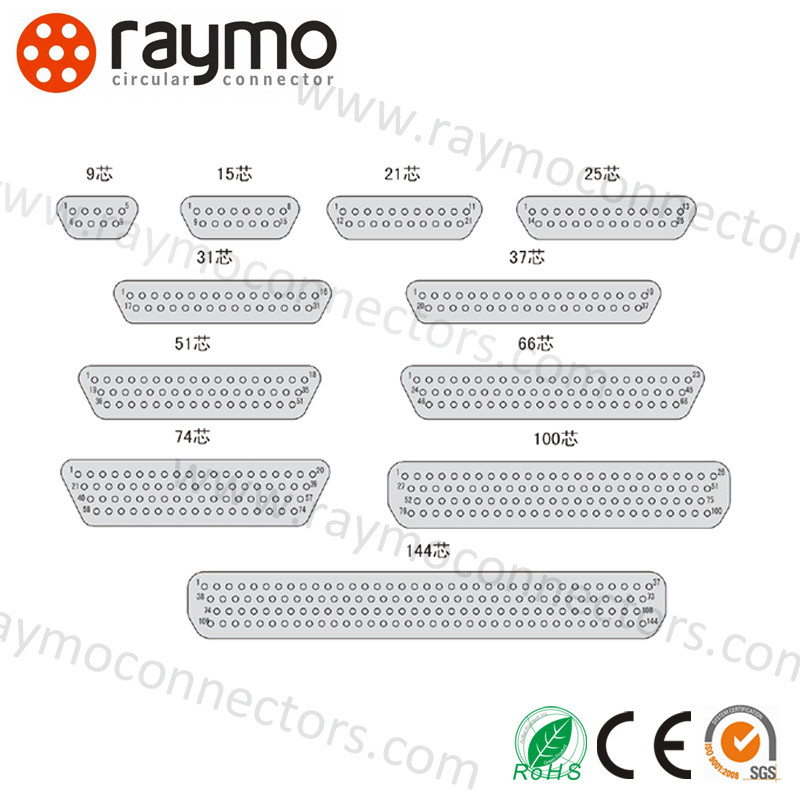

| Contact | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Temperature Range | -55～+125 ℃ |
| Material | Metal |

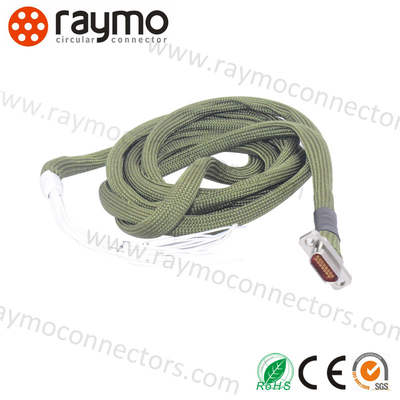

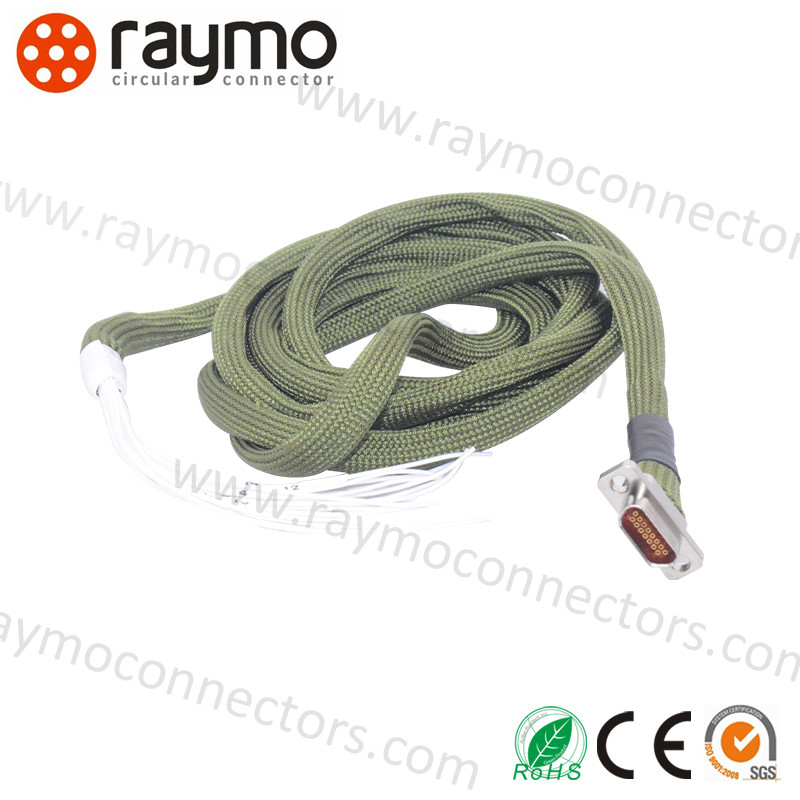

The J30J series connector is a versatile and reliable product designed for various industrial applications. Featuring customizable wire length options, this connector can be precisely tailored to meet specific project requirements, ensuring optimal performance and fit.
With gold plating for enhanced durability and conductivity, and a copper alloy center conductor construction, the J30J series delivers superior longevity and performance in demanding environments.
| Material | Metal |
| Plating | Gold Plating |
| Insulation Resistance | ≥ 5000 MΩ |
| Center Conductor | Copper Alloy, Gold Plating |
| Grid Distance | 2.54×2.54 |
| Contact Gender | Male Plug/female Receptacle |
| Contact Spacing | 1.27mm |
| Temperature Range | -55～+125 ℃ |
The J30J series connector is ideal for demanding applications across multiple industries:
Our comprehensive technical support includes detailed product documentation, user manuals, datasheets, and specifications. Our dedicated team is available to assist with technical inquiries and troubleshooting to ensure optimal product performance.
