| اسم العلامة التجارية: | Raymo |
|---|---|
| إصدار الشهادات: | CE/RoHs/REACH/ISO9001:2015 |
| رقم الموديل: | J30J-21TJS |
| وثيقة: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| الأسعار: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| شروط الدفع: | T/T ، D/A ، D/P ، Western Union ، Moneygram |
| Supply Ability: | 5000PCS Per Month |
| رقم التعريف الشخصي جهة الاتصال: | 9 دبابيس | طول الكابل: | كما يتطلب |
|---|---|---|---|
| الدبابيس المتاحة: | 9 ، 15 ، 21 ، 25 ، 31 ، 37 ، 51 ، 66 ، 74 ، 100 | يكتب: | الموصل |
| قائد المركز: | سبيكة النحاس ، طلاء الذهب | نطاق درجة الحرارة: | -55～+125 درجة مئوية |
| تصنيف الجهد: | 250 فولت | مسافة الشبكة: | 2.54 × 2.54 |
| إبراز: | J30J series 9-pin connector,250V electronic equipment connector,J30J series 9-pin 250V connector,250V electronic equipment connector,J30J series 9-pin 250V connector |
||
| Attribute | Value |
|---|---|
| Contact Pin | 9 Pins |
| Cable Length | As Require |

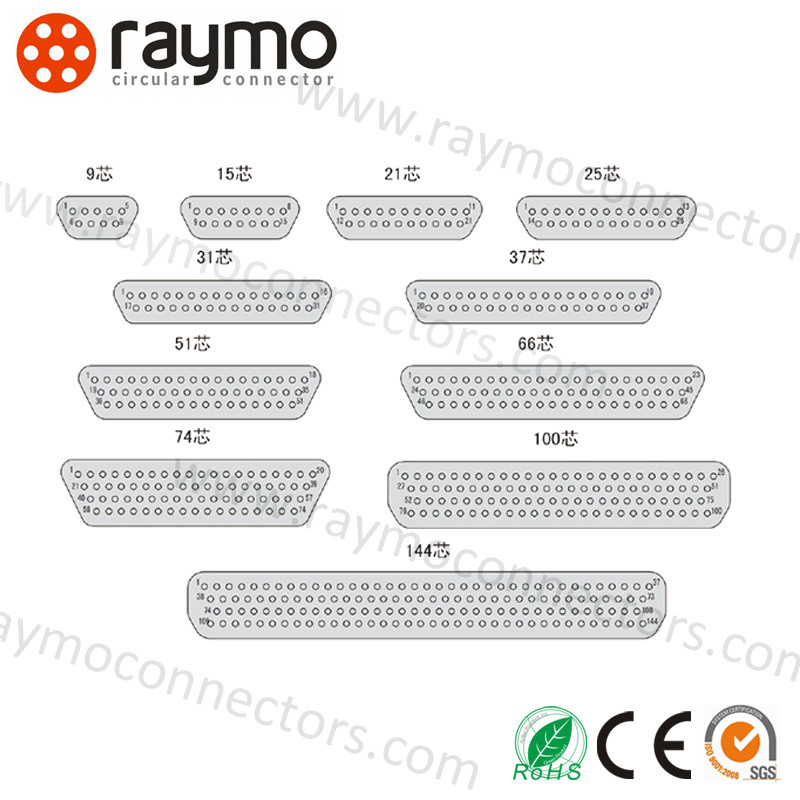

| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Type | Connector |
| Center Conductor | Copper Alloy, Gold Plating |
| Temperature Range | -55～+125 ℃ |
| Voltage Rating | 250V |
| Grid Distance | 2.54×2.54 |

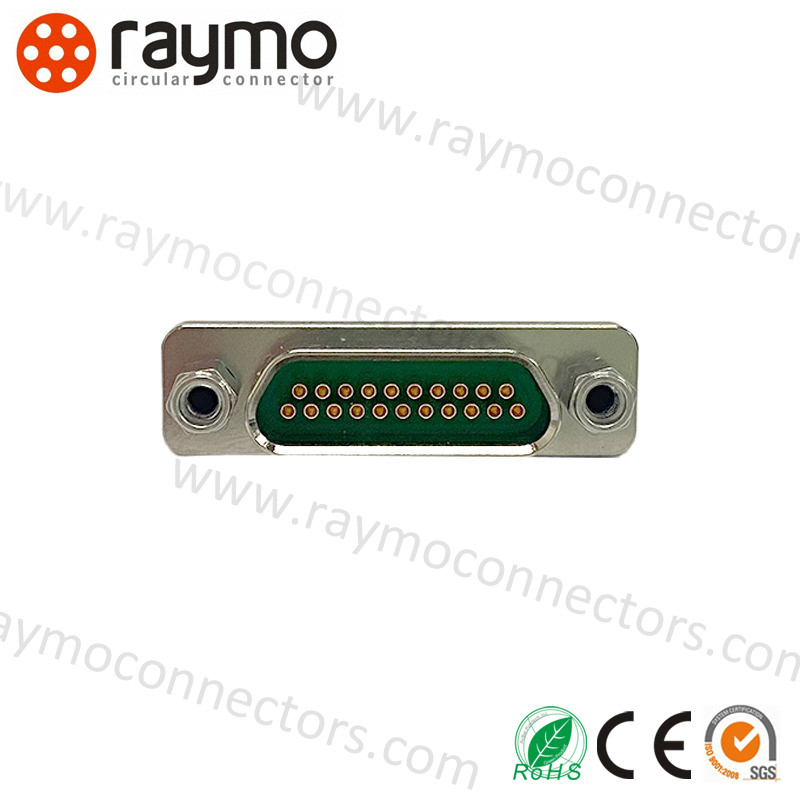

The J30J series connector is a highly reliable and versatile product designed for various industrial applications. With customizable cable length and durable construction, it provides secure connections between devices and systems.
| Parameter | Value |
|---|---|
| Voltage Rating | 250V |
| Application | Electronic Equipment |
| Mating Cable | AFR-250, White Wire 0.1~0.15mm² |
| Wire Length | 50cm, 500mm |
| Withstanding Voltage | 500VAC |
| Temperature Range | -55～+125 ℃ |
| Mating Cycle | 500 Times |
| Leak Rate | ≤1.01X10^-3 Pa.cm³/s |
