| مكان المنشأ: | شنتشن ، الصين |
|---|---|
| اسم العلامة التجارية: | RAYMO |
| إصدار الشهادات: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| رقم الموديل: | JY27466/MS27466 |
| الحد الأدنى لكمية: | 1piece |
| الأسعار: | negotiable |
| تفاصيل التغليف: | 50pc/ctn |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | D / A ، D / P ، T / T ، ويسترن يونيون ، موني جرام ، L / C. |
| القدرة على العرض: | 500pcs/الأسبوع |
| اسم PRCT: | وصلات دائرية عسكرية | نموذج: | JY27466/MS27466 |
|---|---|---|---|
| حجم السكن: | 09 | رقم PIN: | 3 دبابيس |
| حجم الاتصال: | 3-20# | نوع التثبيت: | وعاء شفة مربعة الجدار |
| طريقة الإنهاء: | لحام | الاتصال الجنس: | أنثى |
| إبراز: | MIL-DTL-38999 Circular Connectors,Military Circular Connectors,JY27466/MS27466 Circular Connectors,Military Circular Connectors,JY27466/MS27466 Circular Connectors |
||
Description for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors
GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..
Specification for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors |
| Model | JY27467 |
| Contact Gender | pin(male) |
| Contacts | 3-20# |
| Body size | 09 |
| Terminal | Solder |
| Housing plating | electroless nickel plating |
| Pin numbers | 3 pins |
| Application | military systems such as aviation, aerospace, weapon, and other electronic equipment systems |
Electrical data & Mechanical data for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors
| Housing | Aluminum alloy/stainless steel |
| Plating |
B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating |
| Insulator | Thermoset plastic |
| Grommet and seal | Silicon rubber |
| Contact |
Gold-plated copper alloy, crimping, soldering, PCB |
| Endurance | 500 cycles |
| Vibration |
Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz |
| Shock | At 3 ms half sinusoid, peak value |
| Operating temperature |
B class: -65℃～+175℃ E, F class: -65℃～+200℃ |
| Salt spray |
According to method 1001 GJB1217 B class 500h, E class 1000h F class 48h |
| Relative humidity | 98% at 40℃ |
| Operating height | ≤30480m |
Features for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors
Application for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors
Military systems such as
Our advantage for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors

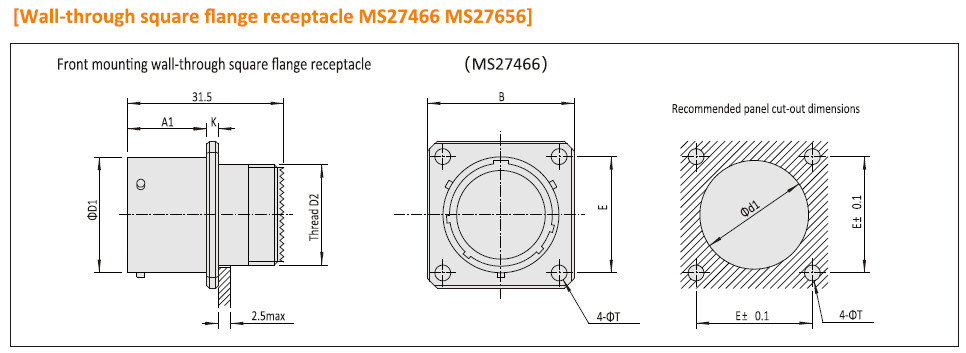

Dimention for Amphenol MIL-DTL-38999 JY27466/MS27466 Receptacle Military Circular Connectors
Raymo also do:
